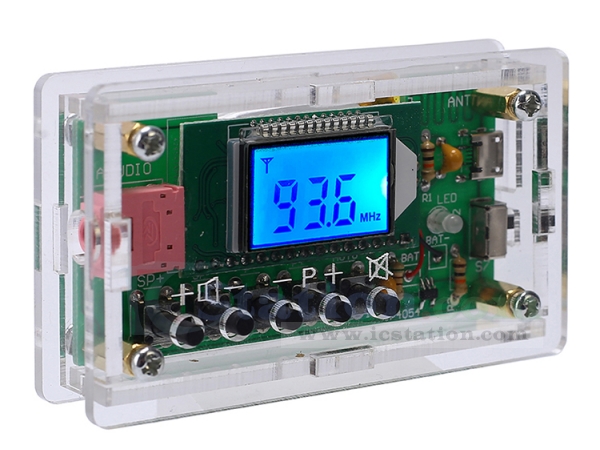

LCD Display FM Radio Receiver DIY Kit (Battery Excluded)
1.Introduction:
It is an 76.0MHz-108.0MHz Wireless FM Radio Receiver DIY Kit.
It has a built-in high-definition display LCD display screen which can clearly display the receiving frequency and it can store 22 radio stations, which is enough to meet your needs.
Note: This kit doesn't contain battey due to shipping restrict here. Please prepare 3.7V LiPo Battery by yourself (Regular battery doesn't work.).
2.Feature:
1>.HD display LCD display screen
2>.Support storage of 22 radio stations
3>.Automatically search for radio stations
4>.Built-in 30-level digital volume adjustment
5>.Automatic memory function after power off
6>.Support 76Hz-108MHz receiver frequency
7>.Built-in rechargeble circuit for the battery
8>.Built-in 5W power amplifier
9>.Power saving mode with backlight off for 20 seconds
3.Parameter:
1>.Product Name:LCD Display FM Radio Receiver DIY Kit
2>.Work Voltage:DC 3.0V~5.0V
3>.Work current:40mA
4>.Output power:500mW(just for headset)
5>.Output channel:Dual channel stereo
6>.Frequency:87.0MHz~108.0MHz(Disable Campus Broadcasting Band)
7>.Frequency:76.0MHz~108.0MHz(Enable Campus Broadcasting Band)
8>.Equivalent noise: >=30dB
9>.Work Temperature:-40℃~85℃
10>.Work Humidity:5%~95%RH
11>.Size(Installed):82*49*20mm
4.Use Methods:
1>.Keep press AUTO button to automatically search and store the radio stations that can be listened to.
2>.Automatically name searchable stations like P01,P02,P02 and so on.
3>.Press P+ and P- to switch saved stations.
4>.Press V+ and V- to adjust volume from V00 to V30.
5>.Switch Campus Broadcasting Band: Keep press V+ and V- before power ON and then turn ON work power switch. It means enable Campus Broadcasting Band if display C1 on LCD. It means disable Campus Broadcasting Band if display C0 on LCD.Available after restart.
6>.Enable backlight mode: Keep press P+ and P- before power ON and then turn ON work power switch. It means keep backlight ON if display B1 on LCD. It means the backlight will turn OFF after 20second if display B0 on LCD(This is the power saving mode).Available after restart.
