Home > Wireless Module > WiFi Module > ESP8266 WIFI Wirelesss Transceiver Module Support Airkiss Protocol UART TTL Control

ESP8266 WIFI Wirelesss Transceiver Module Support Airkiss Protocol UART TTL Control

GY16687
5 9
$6.99 $4.89
Quantity3+5+10+
Price$4.70$4.50$4.20
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
1.Description:

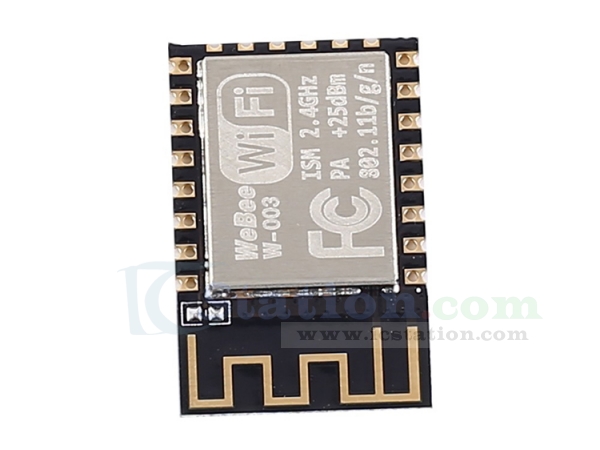

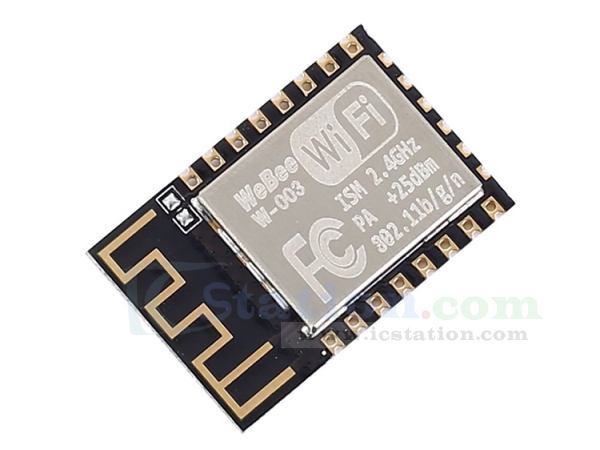

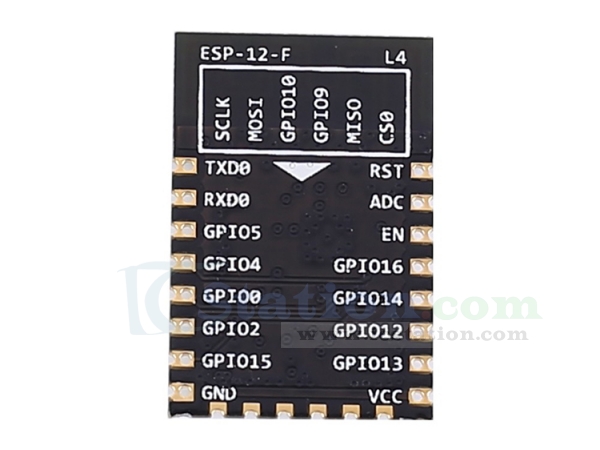

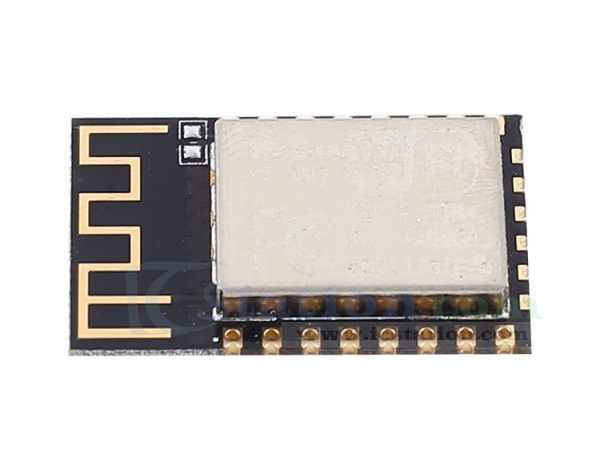

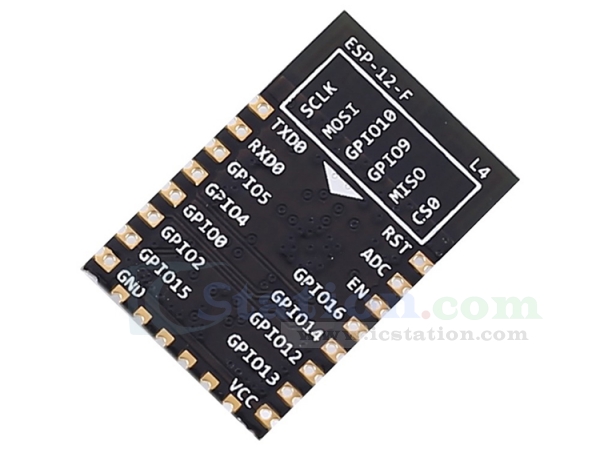

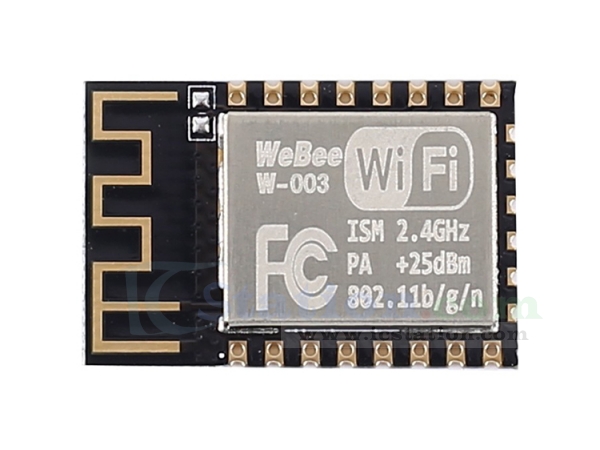

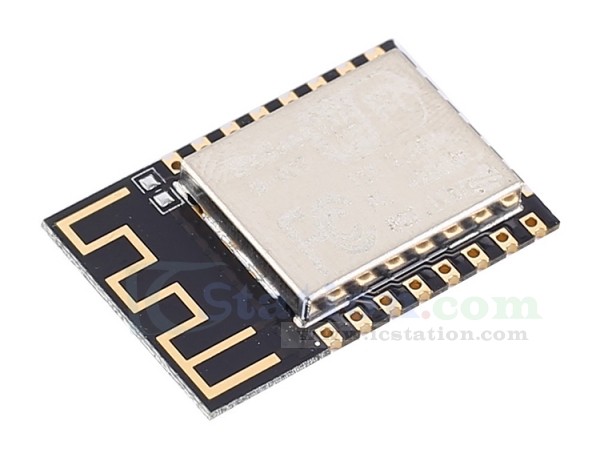

  It is a ESP8266 WIFI Wirelesss Transceiver Module.It base on ESP8266EX controller.It supports data transparent transmission function and Airkiss protocol.

2.Feature:
  1>.UART to WIFI data transparent transmission
  2>.Support STA,AP and WIFI mode
  3>.Low power consumption

3.Parameter:
  1>.Model: W-003
  2>.Work Voltage:DC 3V~3.6V
  3>.WIFI protocol:802.11 b/g/n
  4>.Communication distance:80meter(Max)
  5>.Socket roles:TCP Server, TCP Client,UDP
  6>.Transmit power:18.5dBm(Max)
  7>.Work Temperature:-25℃~85℃
  8>.Work Humidity:5%~95%RH

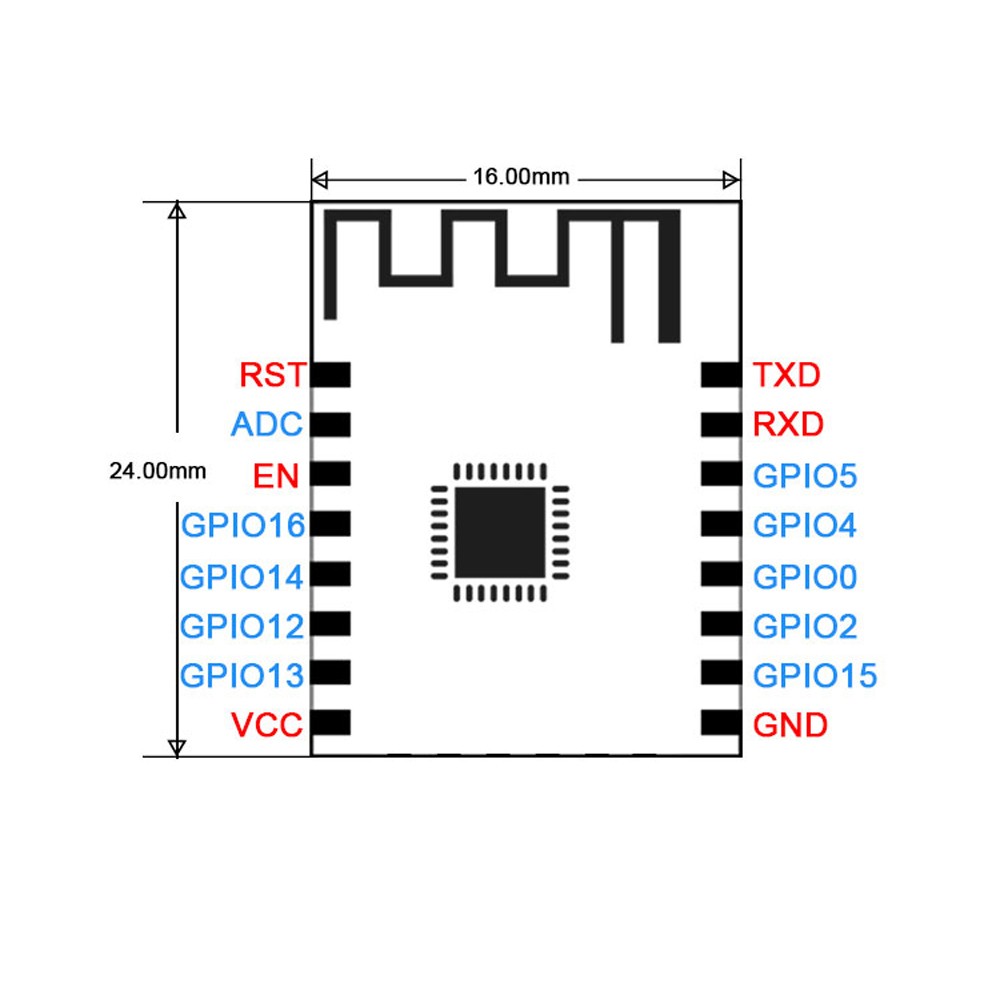

  9>.Size:24*16*3mm

4.Package:
   1pcs ESP8266 WIFI Wirelesss Transceiver Module

Quantity3+5+10+
Price$4.70$4.50$4.20
