Downloader Tester Shield for ESP-01/01S/12E/12F/12S/18T ESP8266 IoF Wireless WIFI Transceiver Module

GY17101
5 9
$10.99 $7.69
Quantity3+5+10+
Price$7.50$7.30$6.99
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
1.Description:

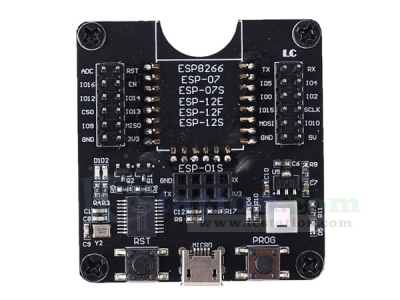

  It is a Downloader for ESP-12S/12F/12E/07S/07S/01S/01 WIFI Wireless Module.It has output all GPIO ports for user debugging.

2.Feature:
  1>.Super simple operation
  2>.Repeatedly used
  3>.Chip clip fixing

3.Parameter:
  1>.Work Voltage:DC 5V
  2>.Receiver Indicator:Yes
  3>.Transmitter Indicator:Yes
  4>.Power Indicator:Yes
  5>.Downloading Indicator:Yes
  6>.Suitable model:ESP-12S/ESP-12F/ESP-12E/ESP-07S/ESP-07S/ESP-01S/ESP-01
  7>.Work Temperature:-25℃~85℃
  8>.Work Humidity:5%~95%RH
  9>.Size:49*46*15mm

4.Use Steps:
  1>.Install CH340 UART Driver Software on PC.
  2>.Download FLASH tool 'ESP FLASH DOWN LOAD TOOL'.
  3>.Insert ESP8266 module on Shiled.
  4>.Connect module to PC by USB cable.
  5>.Download automatically:
       5.1>.Open FLASH download tool.
       5.2>.Set software parameters as shown.
       5.3>.Click START button on software to download firmware.

5>.Manual download:
       6.1>.Open FLASH download tool.
       6.2>.Set software parameters as shown.
       6.3>.Keep press PROG button about 5second.
       6.4>.Then short press Reset button.
       6.5>.Click START button on software to download firmware.

6.Package:
  1pcs Downloader Tester Shield for ESP-01/01S/12E/12F/12S/18T
Quantity3+5+10+
Price$7.50$7.30$6.99
