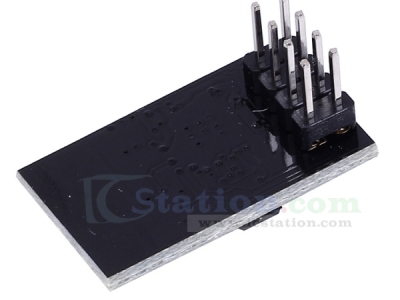

ESP8266 ESP-01 Remote Wireless Module WIFI to UART Module

The advantage of modules:

  1. The smallest by 11 * 10 mm or so,Embedded in any convenient products
  2. Powerful internal run LWIP protocol
  3. Supports three modes: AP, STA and AP + STA coexistence pattern
  4. Improve the clean efficiency of the AT command, let you develop more simple.

Please download the material HERE

enter image description here

enter image description here

enter image description here

enter image description here

AT+CWQAP

AT+CWQAP;Exit links with AP

Testing Instruction:

      AT+CWQAP=?

response

OK

illustrated

None

execute instruction:

      AT+CWQAP

response

OK

illustrated

None



AT+CWSAP

AT+CWSAP Setting up the AP mode parameters

test instruction

response



illustrated



Queries instruction:

AT+CWSAP?

response

Returns the current AP parameters

+CWSAP;<ssid>,<pwd>,<chl>,<ecn>

illustrated

None

setup instruction

AP+CWSAP=

<ssid>,<pwd>,<chl>,<ecn>

response

OK

Or

EPPOR

illustrated

 instruction parameters

<ssid>string parameterAccess Point Name.

<pwd>string parameterPassword up to 64 bytes ASCII

<chl>Channel Number

<ecn>cipher mode

0   OPEN

                1   WEP

     2   WPA_PSK

      3   WPA2_PSK

            4   WPA_WPA2_PSK









illustrated

This set of instructions is only effective after AP mode to open



 TCP/IP toolkit  AT command

Command

Description

AT+CIPSTATUS

Get the connection status

AT+CIPSTART

To establish a TCP connection or registered UDP port number

AT+CIPSEND

send  data

AT+CIPCLOSE

Close TCP or UDP

AT+CIFSR

Get the local IP address

AT+CIPMUX

Start multiple connections

AT+CIPSERVER

Configured as a server



AT+CIPSTATUS

AT+CIPSTATUS Get the connection status

Testing Instruction

response

OK

illustrated

None

Executes Instruction

AT+CIPSTATUS

response

Returns the current module connection state and connection parameters

STATUS:<stat>

+CIPSTATUS;<id>,<type>,<addr>,<port>,<stat>

OK



illustrated

Response Value Description:

<id> connection id number 0-4

<type>string parameter,type TCP or UDP

<addr>string parameter,IP address

<port>Port Number





AT+CIPSTART

AT+CIPSTART To establish a TCP connection or registered UDP port number

Testing Instruction

AT+CIPSTART=?



response

+CIPSTART:(<type>A list of values ),(<IP address>Range),(<port>Range)

OK

illustrated

None

Set command

  1. single way connection

(+CIPMUX=0)

AT+CIPSTART=

<type>,<addr>,<port>



  1. Multiple connections

(+CIPMUX=1)

AT+CIPSTART=

<id><type>,<addr>,

<port>









response

OK-Format correct and the connection is successful

Or

ERROR- Failure

Or

ALREAY CONNECT,Connection has been





illustrated

Command parameters:

<id>0-4 connection id number

<type>string parameter,Indicates that the connection type,TCP established  tcp connection .

udp established UDP connection .

<addr>string parameter,The remote server IP address.

<port>Remote server port number



illustrated

No. 0 connections can dient or server connections, the other can only be used to connect to a remote server id



AT+CIPSEND

AT+CIPSEND send  data

Testing Instruction:

AT+CIPSEND=?

response

OK

illustrated

None

setup instructions:

  1. single way connection

(+CIPMUX=0)

AT+CIPSTART=<lenght>











2)Multiple connections

(+CIPMUX=1)

AT+CIPSTART=

<id>,<lenght>







response

Response Returns the specified length of data.

After receiving the instruction to wrap return ">", and then begin to receive serial data, send data when the data length full lenght.

If you do not establish a connection or connection is disconnected, return ERROR.

 if the data is sent successfully,return to SEND OK.

illustrated

 instruction  parameters:

<id>Required for the transport connection id number.

<lenght>numeric argument,Indicates that the length of the send data







AT+CIPCLOSE

AT+CIPCLOSE Close TCP or UDP

Testing Instruction:

     AT+CIPCLOSE=?

response

OK

illustrated

None

Set command:

Multiple connections

AT+CIPCLOSE=<id>



response

If the input is correct, return OK

Without the connection, returns the Link is not

If you turn off No. 0 connection, and the connection for the server, it returns Cant close (closed 0 need to restart the server connection)

illustrated

command parameter:

<id>Need to close the connection id

Executes Instruction:

single way connection

AT+CIPCLOSE

response

If the input is correct, return OK

Without the connection, returns the

ERROR

If you want to shut down the server, it returns we must restart (connection need to restart)

illustrated

None

illustrated

Closed state is unlink



 AT+CIFSR

AT+CIFSR Get the local IP address

Testing Instruction:

AT+CIFSR=?

response

OK

illustrated

None

Executes Instruction:

AT+CIFSR



response

+CIFSR:<IP address>

OK

Or

ERROR

illustrated

return response:

<IP address>-The current IP address of the machine(station)



AT+CIPMUX

AT+CIPMUX Start multiple connections

query directives:

      AT+CIPMUX?





response

+CIPMUX:<mode>

OK

illustrated

None

Set command:

AT+CIPMUX=<mode>



response

OK

If you already are connected, it returns

Link is builded





illustrated

command parameter

<mode>

0  single way connection mode

1  Multiple connection mode



Executes Instruction

response

None

illustrated

None



AT+CIPSERVER

AT+CIPSERVER Configured as a server

Executes Instruction

AT+CIPSERVER=

<mode>[,<port>]





response

Automatically create a server monitor server after opening

OK

If 0 connection being used, it returns the Link is builded

Close need to restart the server



illustrated

command parameter:

<mode>

0  Close the server mode

1  Open the server mode

<Port> port number, the default value is 333



AT command classification

Classification

instruction format

 command function

TEST command

AT+<X>=?

This command is used to query or set command to set the parameters of the internal procedures and its value range.

Query command

AT+<X>?

This command returns the current value of the parameter.

Set  command

AT+<X>=<...>

This command is used to set the user custom parameter values.

 Execute Command

AT+<X>

This command is used by the module to perform internal program control functions varying parameters immutable.

Basic AT command

Command

Description

AT+RST

Restart the module



AT+RST

AT+RST Restart the module

Execute Command



AT+RST

response

OK

illustrated

None
