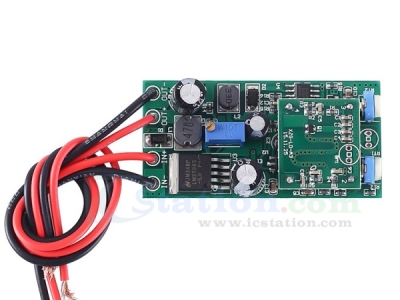

DC 36V to 12V Microwave Radar Sensor Module Human body Induction Switch Delay Time Sensing Distance Voltage Adjustable Switch Controller

13691
5 9
$5.99 $4.19
Quantity3+5+10+
Price$4.35$4.29$4.15
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
Description:
    The microwave radar switch module is of a DC type, with an input voltage of 12V-36V and an output voltage of 1.5-35V. The maximum load current is 3A, and the maximum load power is 30W.

  It can be powered by electric vehicle lithium battery and battery pack. Applicable to DC 12V-36V to 1.5-35V power supply LED lights, light panels, light bars and other DC lighting fixtures for human body induction automatic control, as well as security alarm devices, people voice prompt system and other fields.

Basic parameters:
1>.Model: XZG-LDK-DC-1
2>.Input voltage: DC 12V-36V
3>.Output voltage: DC 5-35V(Default 12V)
4>.Maximum load current: 3A
5>.Maximum load power: 30W(Max)
6>.Sensing distance: 0.5-7 meters (Adjustable)
7>.Delay time: 1~120second (Adjustable)
8>.Operating Temperature:-20℃~85℃
9>.Operating Humidity:5%~95%RH
10>.Module Size:60*30*15mm
Tested by Outstanding Partner Julian:

Learn More Details in the Video:
(The language in the video is English)


Quantity3+5+10+
Price$4.35$4.29$4.15
There are currently no product reviews.
