Parameters:

No. Parameter Value
1 Product name Multi function electronic scale
2 Product model Trans--CRS--162DZC
3 Maximum weighing 10kg
4 Precision grade 1g
5 Machine size 15.2cm*14.1cm*6.5cm (L*W*H)
6 Platform size 15.6cm*9.5cm*0.5cm (L*W*H)
7 Net weight 0.515kg
8 Product color Black
9 Product accessories USB-DC5V power cord
10 Delivery packing The default delivery of component


Features:
    1>. Time off memory. Travel time accurate.
    2>. Automatically calculate what day the week is based on the date. Don't set the week alone.
    3>. The alarm time is saved when the alarm is on or off, and the data is set before power up.
    4>. Own calibration function. The pressure coefficient calibration can be easily realized by keyboard, and the zero error of weighing can be realized.
    5>. “Calibration factor” is saved by power off, once calibrated and recalibration won’t be needed.
    6>. Main function: small volume, super large range. You can weigh anything that's common.

Component listing:

NO. Component Name PCB Marker Parameter QTY
1 Metal Film Resistor 4.7K 4.7K 2
2 Crystal 11.0592M 11.0592MHz 1
3 Crystal 32.768K 32.768KHz 1
4 Ceramic Capacitor 30P 30pf 2
5 IC Socket DS1302 DIP-8 1
6 IC Socket AT24C02 DIP-8 1
7 IC Socket STC89C5XRC DIP-40 1
8 DS1302 DS1302 DIP-8 1
9 AT24C02 AT24C02 DIP-8 1
10 STC89C52 STC89C5XRC DIP-40 1
11 CR1220 Battery Socket CR1220   1
12 CR1220 Battery   3V 1
13 DS18B20 DS18B20 TO-92 1
14 Round Pin DS18B20 3P 1
15 Power Pin   2.54mm 2P Right Angle 1
16 Switch Pin   2.54mm 2P Right Angle 1
17 Potentiometer 103 10K 1
18 S8550 S8550 TO-92 1
19 Buzzer   5V 1
20 Network Resistor 103 10K 1
21 Female Pin   4P 1
22 Female Pin   16P 1
23 Male Pin   4P 1
24 Male Pin   6P 1
25 Male Pin   2.54mm 8P Right Angle 1
26 HX711 Module     1
27 LCD1602   Yellow 1
28 Male Pin   16P 1
29 Cable   2P 10cm 2
30 Keyboard   4*4 1
31 Pressure Sensor   10Kg 1
32 Acrylic Stent     6
33 Seat Cushion     6
34 Screw   M3*10 17
35 Nut   M3 17
36 Acrylic Gasket   2.5*2cm 8
37 Screw   M7*30 4
38 KCD1-11 Switch     1
39 Power Socket     1
40 Nut   M11 1
41 USB Cable   5.5*2.1MM 1


Function introduction:
1>. Calendar, time, temperature display function.
It will display Date,Time and Temperature after power on.
It can set Date and Time by Set Button ‘A’ and ‘+’ button ‘B’ and ‘-’ button ‘C’.Button ‘D’ can check the alarm clock.



2>. Alarm function.
In calendar time mode, press the button D to enter the view alarm interface.
User can adjust the alarm status and regular time by Set Button ‘A’ and ‘+’ button ‘B’ and ‘-’ button ‘C’.
Buzzer alarm when reach the regular time.Press any button to end the alarm.
The ON and OFF status display is Chinese.“开”means ON, and “关”means OFF.



3>. Valuation scale function.
“Calendar mode” and “Electronic scale mode” switching by button “C”.
The value of unit price “P” can be set by numeric button, and the Money “M” will be calculated automatically.
The unit price “P” can be accurate to 0.1. At this time, press the button ‘D’ to switch to the counting scale mode.



4>. Counting scale function
“weighing scale” and “counting scale” switching by button “D”.
1pcs weight D can be set by the digital keyboard, and the system will automatically calculate the number of N. A single weight of D can be accurate to 0.1g.
E.g: the national standard weight of one yuan coin is 3.2G. The weight of the single weight D is set to 3.2G, pan put 10 coins, electronic scales show weight: 0.032KG, number N=10.

Setting Method:
Docking sequence of sensor and circuit board:
    Red, black, green and white four line respectively corresponding to the circuit board of the E+, E-, A-, A+. System power supply 5V. You can use mobile phone     charger USB interface or computer USB interface power supply directly.
1>. Setting of calendar and time
Turn on the switch after the power is switched on. Boot mode defaults to calendar time mode". The screen displays as follows:



    In this mode, only four keys of A, B, C and D are effective.
    A: button setting; press the A key in turn, the year, month, day, time, minutes, seconds of the cursor blinking in turn. It can be adjusted by B and C keys.
    B: button add; click, add a value.
    C: button reduce; click, reduce the value of one.
    D: button of check the alarm clock, enter the “alarm clock” interface.
    The screen displays as follows:


2>. Setting of alarm clock
In this mode of the interface, press the button A, the alarm switch, time, minutes, seconds cursor blinking in turn. Then it can be adjusted by buttons B and C. Press the button D, you can exit the “alarm settings interface” anytime to return to “calendar time interface”.
3>. Setting of valuation scale
In the display time mode, press the C key, switch to the "valuation scale" mode.The screen displays as follows:

The first line displays weight, and the unit is KG.
    The second line displays unit price “P" and money M”.
    In this mode, the 16 buttons are all effective.
    Keypad introduction:
    1234567890 represents the number, the keyboard can set the value of P=, the value can be accurate to 0.1g.
    After setting the unit price, the system will automatically calculate the money M.
    A: clear, peeled.
    B: clear unit price P
    C: switch to “calendar time mode”
    D: switch to the “counting scale mode”
4>. Setting of counting scale
Under the “valuation scale mode”, press the button D to switch to the counting scale mode. The screen displays as follows:


    The first line displays weight value, and the unit is KG.
The second line displays D=single item weight, number of N= items.
    Keypad introduction:
    1234567890 represents the number, the keyboard can set the value of P=, the value can be accurate to 0.1g.
    After setting the unit price, the system will automatically calculate the Number N
A: clear, peeled.
    B: clear unit price P
    C: switch to “calendar time mode”
    D: switch to the “counting scale mode”
5>. System calibration method
After the switch on, the system is stable, put a fixed weight object on the scale. If the system is not equal to the fixed weight display, then press button “#” for 3 seconds. Then the right side of the first line of the screen shows the “calibration factor". After the calibration factor appears, the calibration factor can be increased and reduced by the buttons C and D respectively. By adjusting the "calibration factor", the weight displayed on the screen is exactly equal to the weight of the object. Finally, press button "#" for 3 seconds, the calibration factor disappears, the calibration is complete.

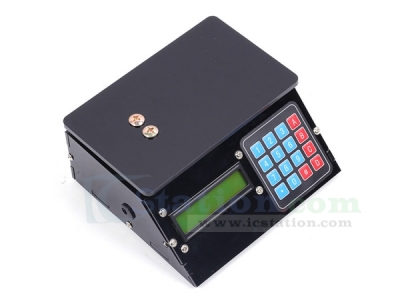

Finished Product:
