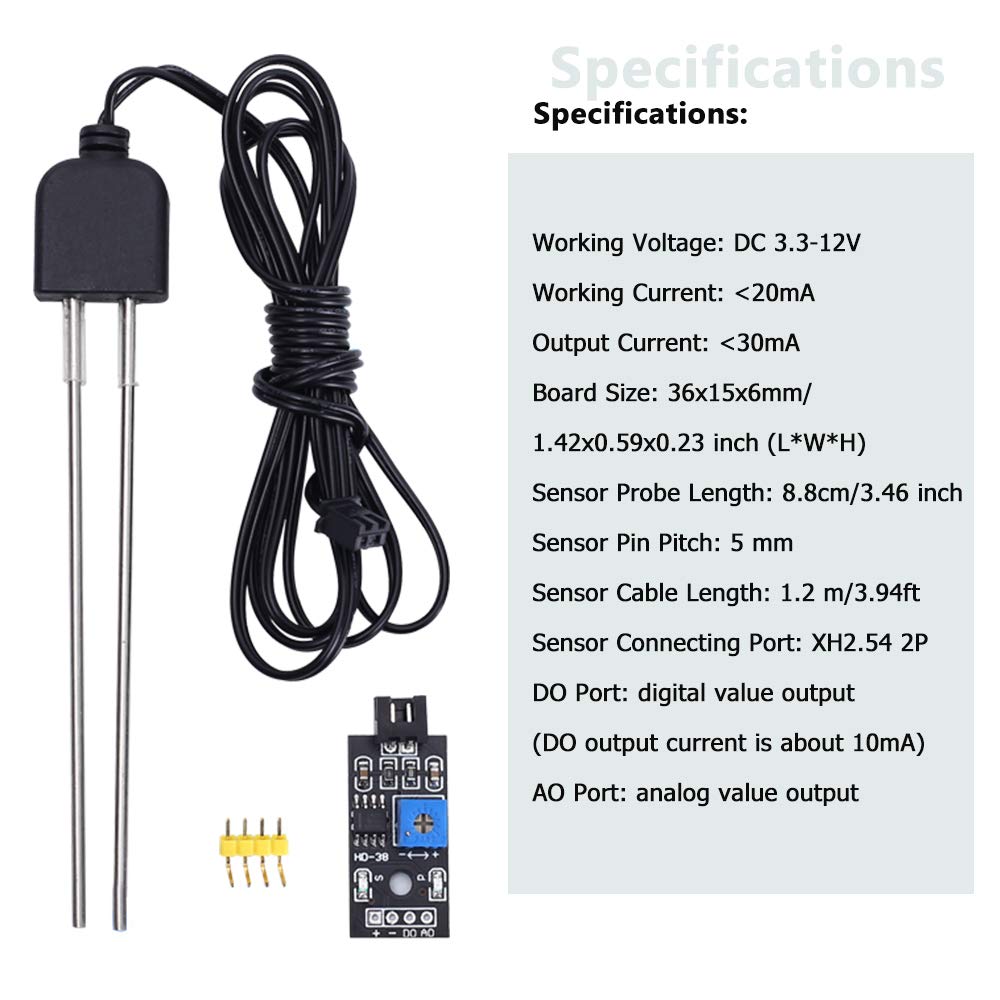

|1||Name||Soil humidity sensor|
|2||Size||36x15x6mm /1.42X0.59X0.23 inch (L*W*H)|
|4||Current||<20mA; <30mA (output)|
|5||Interface||+ - DO AO; DO digital value; AO analog value|
|6||Operating Temperature||-25~85 Celsius|
The soil humidity probe is for detecting humidity, and the voltage comparator is for judging humidity amount; when the humidity is larger than set value , DO will output low level.
1."+" connects power positive; "-" connects power negative. Please do not connect reversely, or it will burn the chip. After connection, "P" power indicator lamp will be on and the module will operate normally
2.Clockwise/counter clockwise adjust the blue potentiometer, it can improve/reduce the detection sensitivity. Take "Thermal Sensor" as example, if defaults 25 Celsius trigger, DO output low level is valid; After clockwise adjusting, that is when the temperature is lower than 25 Celsius, it can trigger; if counter clockwise adjusting, then higher than 25 Celsius can trigger
3.If you clockwise rotate the potentiometer to an extent that the LED indicator which marked "S" is light, that means the testing threshold has been surpassed. Counterclockwise rotating to the end surpasses the threshold too. The module will not work well if the detection threshold is invalid. NOTE: The threshold adjustment only works for using the DO output.
4.AO output is analog value (voltage), and it can detect via MCU AD port
Wiring Diagram 1:
When the detected value is more than the set value, DO will output low level, the triode will be connected and the load will operate. 1K is current-limiting resistor, and 10K is pull-up resistor on DO port.
Wiring Diagram 2:
No more complex circuits, AO port can collect voltage via MCU AD port.
