Infrared Human Body Induction 5.8G Microwave Radar Module DC 2.2V-4.8V Ultra-Low Power Distance Detector

GY19155
5 9
$5.59 $3.91
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

1.Description:

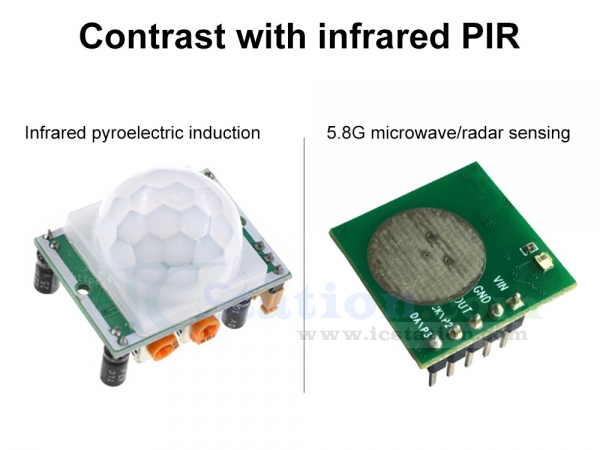

  This is an ultra-low power 5.8G microwave radar module with a working current of only 68uA. It combines the high performance of microwave induction and the ultra-high cost-effectiveness of infrared induction. It can perfectly replace infrared pyroelectric induction and make up for the lack of infrared induction.

2.Feature:
  1.It has low power consumption and only 68uA working current.
  2.Its sensing distance and delay time can be adjusted.
  3.It detects moving objects in real time and converts microwave induction signals into high and low level signals.
  4.It has high sensitivity and strong environmental adaptability.
  5.Its sensing distance is long.
  6.The microwave output signal can be directly connected to the IO port of the microcontroller.
  7.The MCU program reads the status of the output pins of the module,judges whether there is induction,and achieves intelligent control.

3.Parameter:
  1.Product Name:5.8G Microwave Radar Module
  2.Input Voltage:DC 2.8V~4.8V
  3.Stable Frequency:5.8GHz+/-75MHz
  4.Sensing Distance:8 meters
  5.Delay Time After Induction Trigger:2 seconds
  6.Transmission Frequency:5800MHz
  7.Transmitting Power:0.2mW
  8.Output Voltage:DC 2.2V
  9.Working Current:68uA
  10.Work Temperature:-30℃~85℃
  11.Work Humidity:5%~95%RH
  12.Size:20*20*2.5mm

4.Use range:

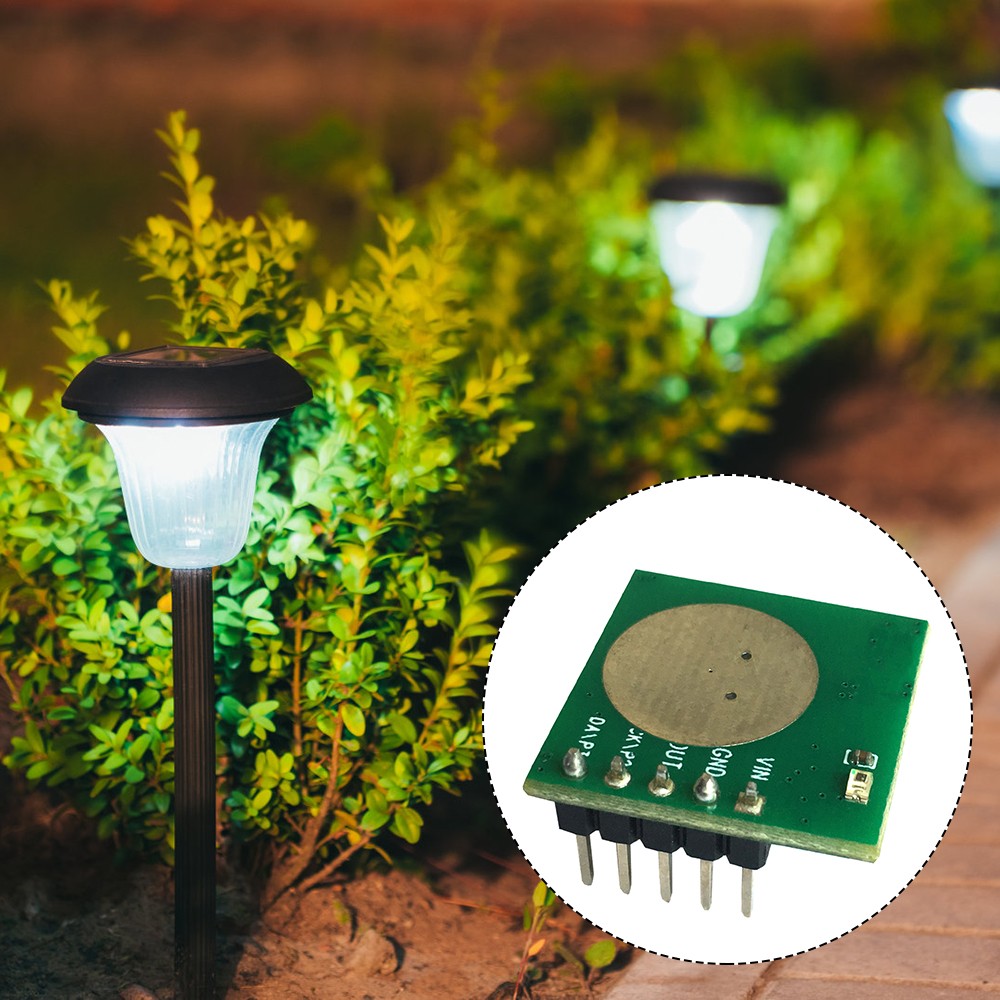

  1.It has low power consumption and is suitable for low power consumption occasions,such as solar induction courtyard lights,alarms,low-power products with batteries and solar power.
  2.The microwave output signal can be directly connected to the IO port of the microcontroller.
  3.The microwave module can also drive the output high and low levels to turn on some switching devices to achieve inductive control,such as driving the switching state of transistors,MOS tubes,relays and other devices.

5.Package:
  1pcs 5.8G Microwave Radar Module
