Home > Sensor Module > Infrared Module > Human Body Induction Switch 3W-100W High Power AC 160V-250V Time Delay Infrared Sensor

Human Body Induction Switch 3W-100W High Power AC 160V-250V Time Delay Infrared Sensor

GY19158
5 9
$8.29 $7.46
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

Description:

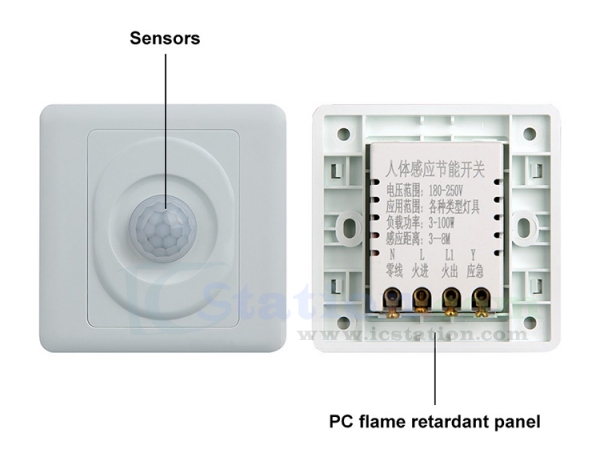

  It is a infrared human body sensor switch.The inductive switch works through the infrared detection function of the human body, and is generally installed indoors.

Feature:
  1.Its work delay time is long.
  2.Its sensing distance is long.
  3.It has a wide sensing range.
  4.Its connection load is heavy.
  5.It uses a full PC flame retardant panel.

Parameter:
  1.Product Name:Infrared Human Body Sensor Switch
  2.Working Voltage:AC 160V~250V
  3.Load Power:3W~100W
  4.Working Frequency:50Hz~60Hz
  5.Connected Lamps:Energy-saving lamps, incandescent lamps,LED lamps,fluorescent lamps.
  6.Sensing Range:110 degrees
  7.Sensing Distance:3~8 meters
  8.Working Delay Time:45~60 seconds
  9.Work Temperature:-25℃~85℃
  10.Work Humidity:5%~95%RH
  11.Size:86*86*30mm

Package:
  1pcs Infrared Human Body Sensor Switch
