Mini AKE-1 PAM8403 Power Amplifier Speaker DIY Kit

11880
5 1
$10.99 $7.69
Quantity5+10+30+
Price$7.75$7.65$7.50
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

Product Introduction:

1.Model: AKE-1
2.Operating Voltage:DC 4.5-5V
3.PCB Board:42*31mm
4.Circuit Principle: stereo sound audio signal is input by J2; since left/right channel circuit
  are completely symmetric, and we take one of them as example in here to analyze signal process;
  audio signal is sent to C5 capacitor through VR1 volume potentiometer;R2 resistor is input to U1
  chip the 10th pin; after internallt amplified by U1, it will be output to loudspeaker through U1 the
  14th pin and 16th pin. J1 is power input port, C7 is power filtering capacitor.

Circuit Picture:

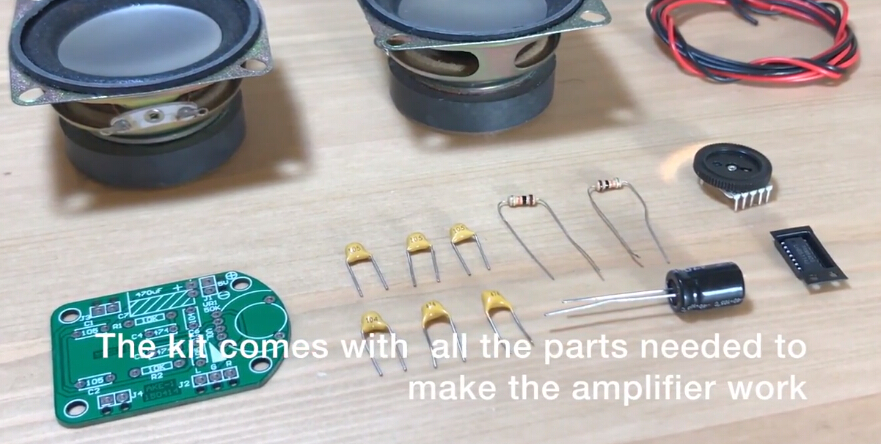

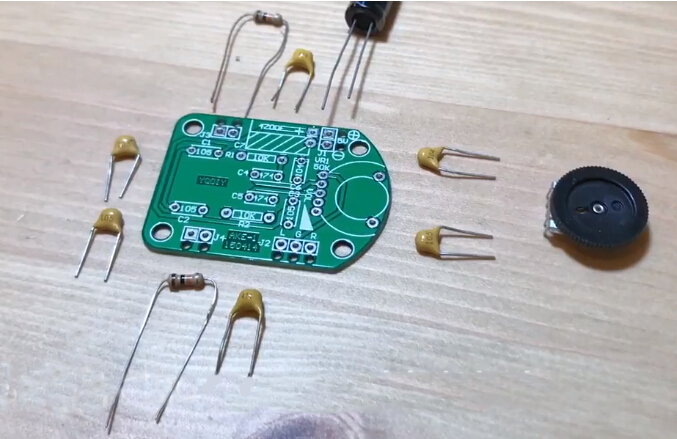

Packing List:

Name Specification Code Quantity
Resistor 10K ohm R1,R2 2
Monolithic Capacitor 0.1uF C6 1
Monolithic Capacitor 0.47uF C4,C5 2
Monolithic Capacitor 1uF C1,C2,C3 3
Electrolytic Capacitor 470uF/16V C7 1
Potentiometer Duplex 50K ohm VR1 1
IC PAM8403 U1 1
PCB 42*31mm   1
Wire Red 0.6m   2
Wire Black 0.6m   2
USB Wire 1m   1
Audio Wire 1m   1
Loudspeaker 4 ohm/3W   2


Notice:
1.The limit operating voltage of the chip is 5.5V;if uses battery for power supply,the total
  voltage should not be over 5.5V,or it will cause damadge to the chip.
2.Since there is great gain in the digital volume control of the chip,please don't let input
  signal too large to cut the amplitude limit when increasing its volume,or it will lead to
  sound distortion or even destroy the chip.



1. Tested by ICStation's Outstanding Partner Lukas Ekers:

Learn More Details in the Video:



2. Tested by ICStation's Outstanding Partner 12voltvids:

Learn More Details in the Video:
(The language in the video is English)



3. Tested by ICStation's Outstanding Partner RobertNetworks:



Learn More Details in the Video:
(The language in the video is Spanish)



Quantity5+10+30+
Price$7.75$7.65$7.50

Feedback

By
Rating: [5] 5 of 5 Stars! Date Added: 2017-10-11 00:53:24
Worked out well for what I wanted it for. Deserved 5 Stars!
