Home > Power Module > Step Down Module > USB DC Step Down Module Isolated Power Supply Board Buck Converter Stabilizer 12V 24V 36V 48V 72V to 5V 1A

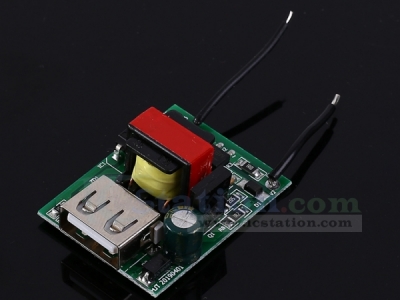

USB DC Step Down Module Isolated Power Supply Board Buck Converter Stabilizer 12V 24V 36V 48V 72V to 5V 1A

13382
5 9
$2.99 $2.09
Time Remaining:
- OR - Add to Wish List
1.Description:
    It is a USB DC step down isolated power supply module. It can be used as ordinary buck power supply module, charger and LED constant current driver. Simple, efficient and practical.

2.Features:
    1>.Isolated output;
    2>.Does not distinguish between positive and negative;
    3>.Support reverse connection protection;
    4>.Support charging function;
    5>.Small volume;

3.Parameters:
    1>.Product Name:USB DC Step Down Isolated Power Supply Module
    2>.Working Voltage:DC 12V-80V
    3>.Output Voltage:DC 5V
    4>.Output Current:1A(The larger the input voltage, the larger the output current)
    5>.Output Power:5W
    6>.Conversion efficiency:About 96%
    7>.Working Temperature range:-40℃~85℃
    8>.Working Humidity range:0%-95%RH
    9>.Size:34*26*17mm

4.Using Steps:
    1>.Connect right input voltage at input terminal.
    2>.Check output voltage by voltmeter and ammeter.
    3>.Connect load.

5.Note:
    1>.Its max output current is 1A and can not keep output 1A.
    2>.Input and output are isolated, safe and reliable.

6.Application:
    1>.Ordinary power supply;
    2>.Battery charger;
    3>.LED drive power;
    4>.Power conversion;
    5>.Car power supply and battery;
    6>.Charging for Mobile phone, MP3, MP4;
    7>.Electric car;
    8>.Battery car modification
