DIY Kit AC/DC-DC LM317 Adjustable Step Down Power Supply Voltage Converter Electronic Soldering Kits

GY20867-1
5 9
$2.99 $2.09
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
1.Introduction:
TJ-56-24 is a AC/DC-DC LM317 Adjustable Buck Power Supply Electronic Soldering DIY Kit. It can input AC<=17V or DC<=25V and adjustable output DC 1.25V-12V within 1A. It is a very interesting DIY electronic product which enables users to understand the circuit more clearly and learn soldering skills.

2.Feature:
1>.AC/DC dual power supply input
2>.Adjustable output voltage
3>.Simple and convenient operation
4>.DIY Hand Soldering

3.Parameter:
1>.Product Name: TJ-56-24 AC/DC-DC LM317 Adjustable Buck Power Supply DIY Kit
2>.Work Voltage:AC<=17V or DC<=25V
3>.Output Voltage:DC 1.25V-12V
4>.Output Current: <=1A
5>.Work Temperature:-40℃~85℃
6>.Work Humidity:5%~95%RH
7>.Size(Installed):60x32mm

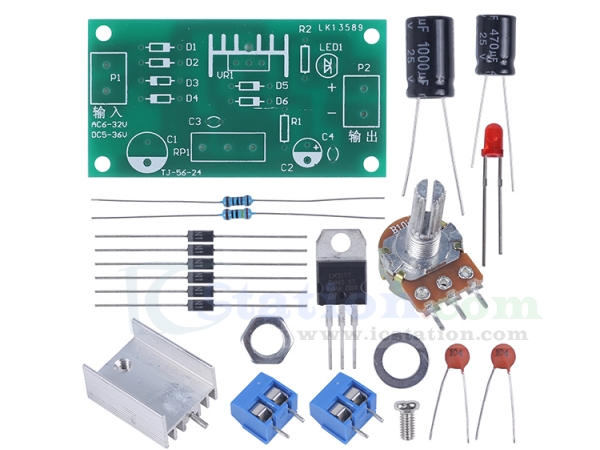

4.Components List:
