15KV High Frequency DC High Voltage Arc Ignition Generator Inverter Step Up Boost Module 18650 DIY Kit U Core Transformer 3.7V

12099
5 9
$2.99 $2.09
Quantity10+
Price$2.49
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

Product Introduction:

NO. Parameter Value
1 Power Supply DC 3.7V-4.2V
2 Working Current 2A(Max)
3 Output Voltage 15KV(Max)
4 Arc Distance 1.5mm(Max)
5 PCB Size 4.2*3.2*0.16cm
6 PCB Material FR4

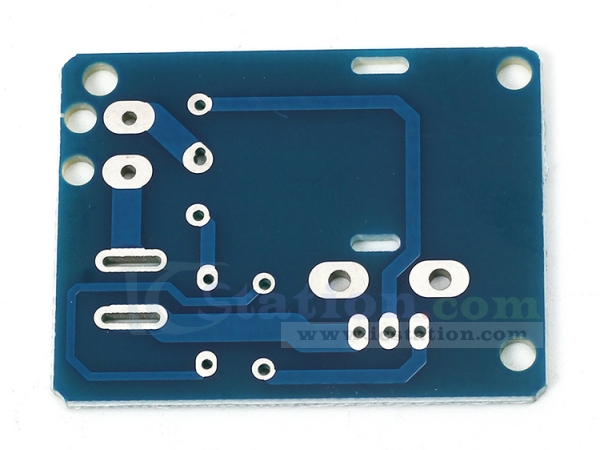

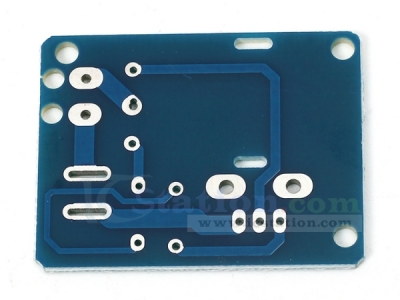

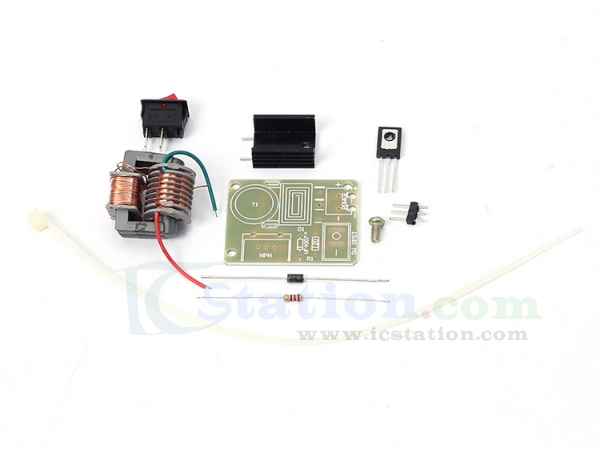

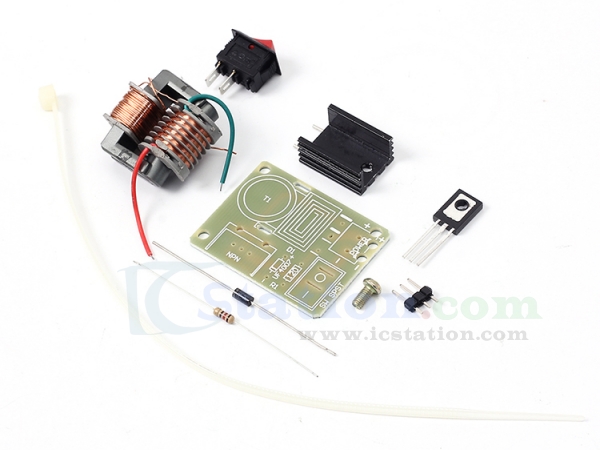

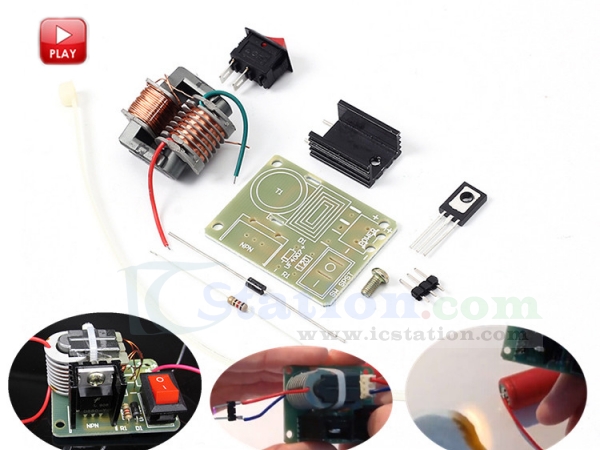

Component Listing:

NO. Component Name PCB Marker Parameter QTY
1 Transformer T1 15KV 1
2 Diode D1 UF4007 1
3 Transistor NPN N20 1
4 Resistor R1 120ohm 1
5 Screw   M3*6mm 1
6 Switch SW   1
7 Male Pin   2P 1
8 Tie     1
9 PCB   4.2*3.2*0.16cm 1

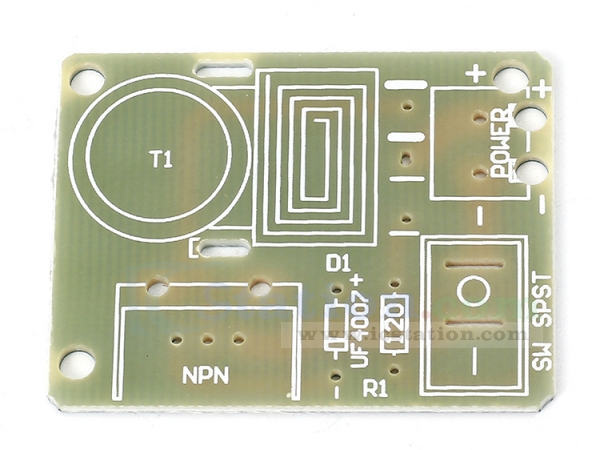

NOTE: User can complete the installation by PCB silkscreen and components list.


Attention:
1>. After operating, the converter should be encapsulated via epoxy resin or insulated wax so that it can be used for a long period of time. When it operates without load, it will not get damaged
2>. The input voltage is 3.7V, that is 18650 battery voltage. If you want to increase the input voltage (increase to 12V), you need to increase the resistance value of feedback resistor, or the triode will be burnt. The feedback resistance increases to 150 ohm-1.5K ohm., its value should be adjusted from high to low
3>. The converter 15KV is the highest output, so its limit output should be not more than 15KV, that is 1.5cm arc
4>. Before soldering, please remove the paint on the enameled wire soldering part.

Note: This DIY product is to produce high pressure, just like electric mosquito swatter, if you touch it with your hand directly, you will have electric shock feeling, this DIY kit also has the same working principle.

Diagram:




Download the Installation Manual Here:

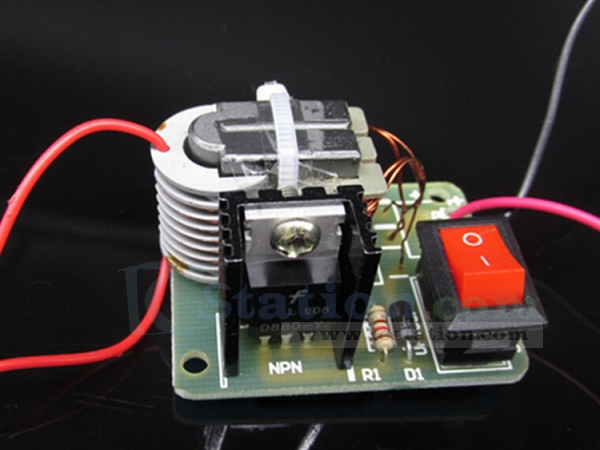

Finished Product Picture:


Tested:

Warning: Considering respect the copyright of the partners, it is not allowed to put the pictures or videos without approval in any other webshop. We are not responsible for any complaint if you used them from our website arbitrarily.


1. Tested by ICStation's Outstanding Partner E-Station:

Learn More Details in the Video:
(The language in the video is Russian)



2. NEW! Tested by ICStation's Outstanding Partner zxDTSxz:

Learn More Details in the Video:
(The language in the video is Russian)
