20S 20secs Voice Sound Module Sound Recorder Recording Module Kit ISD1820P DIY Kits DC 3-5V

12311
5 9
$3.99 $2.79
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

Cheaper Buy Together

$5.31-6%Bundled Price:$4.99

Description:
  This suite adopts 20s voice recording circuit ISD1820P to achieve the save and restore of voice signal.
The chip adopts CMOS technique, the no power consumption information can be saved for 100 years.
Integrated circuit pin function is: 11 pin is power positive (VCC); 8, 14 pin connects power negative (GND);
1 pin is recording port (REC), high level valid; when the REC gets higher, the chip will start recording;
2 pin is edge trigger play (PLAYE); when this port has high level, the chip will start playing the voice;
after playing, it can release PLAYE; 13 pin is recording indication port (RECLED);
when it is on recording state, this port is low, and it can drive LED; 4, 5 pin connects microphone input port (MIC);
6 pin connects auto gain control (AGC) port; 7, 9 pin connect loudspeaker output (SP+, SP-),
and it can directly more than 8 ohm loudspeaker; 10 pin connects oscillation resistor (ROSC), connect oscillation resistor to GND.
Adjust oscillator resistor R4 connected with ROSC, it can stepless adjust the voice speed; the shorter of the recording voice,
the better of the sound quality will be; otherwise, it will be worse.
Note: please do not adjust the resistor for too small, we recommend more than 100K ohm.

Parameter:
1.Operating Voltage: DC 3-5V

Component List:

NO. Component Name PCB Marker Parameter Quantity Remarks
1 Metal film resistors R1 470ohm 1
2 Metal film resistors R2 100K 1
3 Metal film resistors R3,R4 4.7K 2
4 IC Socket U1 DIP-14 1
5 ISD1820 U1 DIP-14 1 Install on IC socket
6 Switch S1,S5 3mm 2
7 Male Pin J1 5P 1
8 Cable     4
9 Ceramic capacitors C1,C2,C3 0.1uf 104 3
10 Ceramic capacitors C5 0.001uf 102 1
11 Electrolytic capacitor C4 10uF 1
12 Speaker SP 8ohm 0.5W 1
13 Microphone MIC 5mm 1
14 Button S2,S3,S4 6*6mm 3
15 LED LED 3mm 1
16 PCB   45*34mm 1


NOTE:You can complete the installation by PCB silk screen and component listing.


Circuit Diagram:

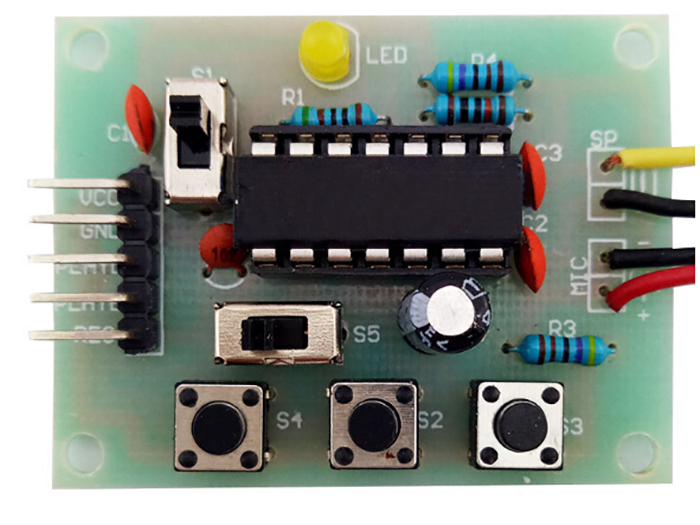

Finished Product Picture:



Tested by ICStation's Outstanding Partner LearningZone:

Learn More Details in the Video:
