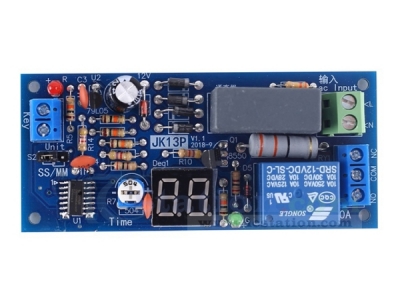

AC 220V 99s 99min Delay Relay Module 10A Switch Controller Adjustable Trigger Delay Circuit Board JK13P-AR

15144
5 9
$5.99 $4.49
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
1.Description:
  JK13P-AR is a trigger delay module.User can adjust delay time by potentiometer to meet require.

2.Feature:
  1>.High voltage trigger
  2>.Delay time can be set
  3>.Support high power load

3.Parameter:
  1>.Model: JK13P-AR
  2>.Work Voltage:AC 100V~220V
  3>.Work power:1W
  4>.Display type:2Bit Red
  5>.Display time:Countdown display
  6>.Delay time:1~99second or 1~99minutes
  7>.Load voltage:DC 30V or AC 250V
  8>.Load current:10A(Max)
  9>.Work Temperature:-25℃~85℃
  10>.Work Humidity:5%~95%RH
  11>.Size:90*40*23mm

4.Function:
  1>.Output turn ON and start delay when get a trigger signal at input.Then keep ON during delaying.The turn OFF after delay.
  2>.The second trigger signal is available during the delay period and restart the countdown.

5.Package:
  1pcs JK13P-AR 99s 99min Trigger Delay Relay Module
