6 Channel SPDT Switch Module, DC 24V Relay Module, AC 270V with Isolated Optocoupler DIN Rail Mount High and Low Level Trigger

GY20262
5 9
$26.99 $22.94
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

DC 24V 6 Channel SPDT Relay Module With Isolated Optocoupler and DIN Rail Mount

Introduction:

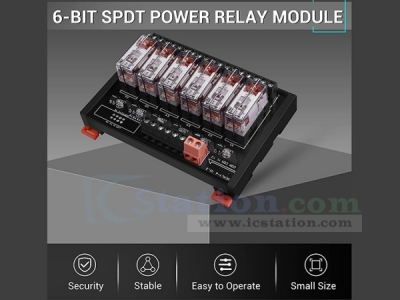

It is a Q14F 24V Pluggable 6Bit SPDT Power Relay Module.
It includes 6pcs intermediate relay with SPDT output control terminal. It is usually used to transmit signals and control multiple circuits at the same time, and can also be used to directly control motors or other electrical actuators.
Isolate the mechanical connection between the control device and the controlled device to ensure that the controlled device can be used normally in a safe environment.

Features:
【Industrial Power Relays】Includes 6 channel intermediate relay with SPDT output control terminal. Support AC / DC control signals and switching current up to 16A at 277VAC (or 30VDC)
【LED Indicators】There are LED indicators for each relay channel and pluggable intermediate relays, easy to replace
【Optocoupler Isolation Protection】The relay has the characteristics of optocoupler isolation protection to avoid equipment damage caused by high voltage generated during the switching process
【DIN Rail Mount】The relay adopts the rail installation method to avoid punching holes, directly embedded in the place you want to install, and can be removed at any time, which is very convenient. Supports rails with a width of 35mm
【Parameters】Input voltage:DC 24V; Work current: about 30mA; Output type:Relay switch output(No voltage output!!!); Trigger signal type: High Low level signal(24V); Load power(N.C.): 8A 277V AC (Max); Load power(N.O.): 16A 277V AC (Max)

Parameter:
Connector Type:Screw
Contact Type:Spdt
Current Rating:8.0 amps , 16.0 amps
Measurement System:Imperial,Metric
Mounting Type:DIN Rail Mount
Specification Met:Din
Input voltage:DC 24V
Work current: about 30mA
Output type:Relay switch output(No voltage output!!!)
Trigger signal type: High Low level signal(24V)
Load power(N.C.): 8A 277V AC (Max)
Load power(N.O.): 16A 277V AC (Max)
Work Temperature:-25℃~85℃
Work Humidity:5%~95%RH

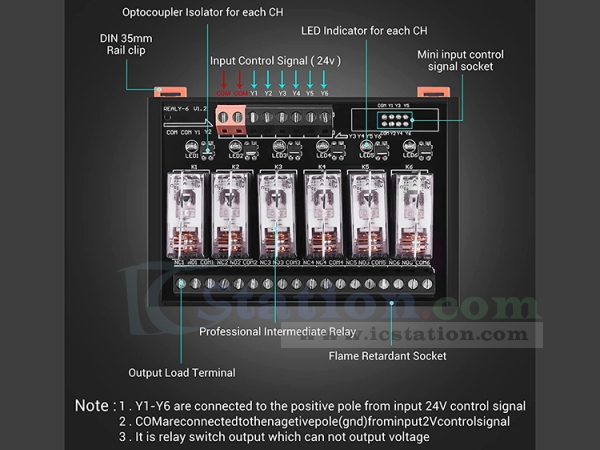

Connection Method:
Y1~Y6: DC 24V Signal input positive terminal
COM: Orange, Signal input negative terminal
NC1~NC6: Relay switch normally close terminal
NO1~NO6: Relay switch normally open terminal
COM1~COM6: Relay switch common terminal
Pitch 5.0mm/0.197" screw terminal block
Wire range: 24AWG ~ 12AWG / 2.5mm²
