DC 3.5-16V 5.8GHz Microwave Radar Active Induction Sensor Module

5 9
$5.99 $4.19
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

  1>.High sensitivity and long sensing distance;
  2>.Reliable and wide sensing angle;
  3>.Wide power supply voltage range;
  4>.Adopting planar antenna for transmission and receiving echo;
  5>.Active sensor, signals can penetrate doors, glass and thin walls;
  6>.Strong anti-interference ability, not affected by external factors such as wind and heat.

  1>.Work voltage: DC 3.5-16V
  2>.Standby static current: ≤3mA
  3>.Transmitting power: ≤2mW
  4>.Trigger Mode: Repeated triggering(default)
  5>.Output signal: TTL level, high effective; High level 3V, low level 0V
  6>.Detection angle: 360°
  7>.Detection distance: 5-8m(The default setting is around 7 meters)
  8>.Work delay: About 1 second
  9>.Work Temperature:-20℃~80℃
  10>.Work Humidity:5%~95%RH

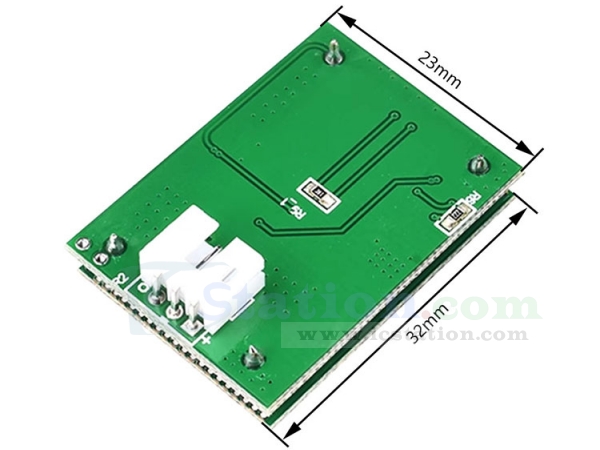

  11>.Size: 23*32mm

  Applicable to security, intelligent lighting, human sensing toys, industrial automation control, automatic sensing electrical equipment, battery powered automatic control, etc.

 1pcs 5.8GHz Microwave Radar Active Induction Sensor Module
