Home > Sensor Module > Infrared Module > DC 5V 5.8G 5.8GHz Microwave Radar Sensor Switch Module ISM Waveband Sensing Module 12m HFS-DC06

DC 5V 5.8G 5.8GHz Microwave Radar Sensor Switch Module ISM Waveband Sensing Module 12m HFS-DC06

9551
5 2
$8.99 $6.29
Quantity3+5+10+
Price$6.65$6.50$6.29
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

Product Introduction:
1.Model: HFS-DC06
2.Frequency: 5.8G
3.Waveband: ISM band

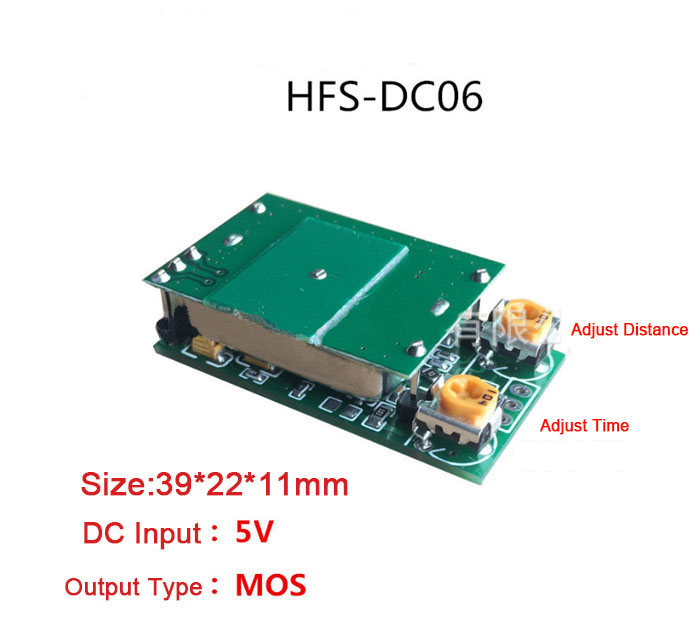

4.Size: 39*22*11mm
5.Input Voltage: DC 5V
6.Minimum Input Current: 30mA
7.Output Type: High level signal

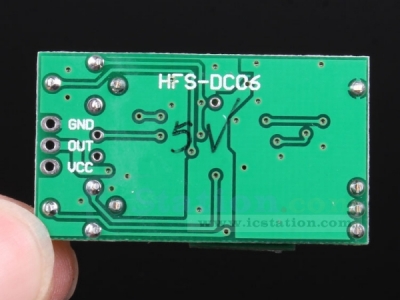

8.Connection Type:
VCC connects with power positive,GND connects with negative;GND and OUT connect with level signal outptut
9.Installation Height: 2-6m
10.Sensing Distance: right forward 12m
11.Sensing Angle: right forward cone 360 degree
12.Sensing Time: 2s

Notice:
1.Please use more than 30mA current power supply to drive this module, and voltage should be stable
2.It is not advisable to install this module by the side of large scale metal, and please don't put it to completely close metal shell, or its performance will be destroyed.

Details:






Tested by ICStation's Outstanding Partner Scott Harden:

Check more details about the rader sensor project:

https://www.swharden.com/wp/2017-06-28-controlling-speakers-with-radar/


https://hackaday.com/2017/07/07/radar-controlled-speakers/

Learn more details in the video:
(The language in the video is English)
