5PCS LM259 Mini-360 DC to DC 4.75V-23V to 1V-17V Buck Converter Step Down Power Supply Module 340KHz

12363
5 9
$4.75 $3.33
Quantity5+10+30+
Price$3.30$3.10$2.80
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

Description:

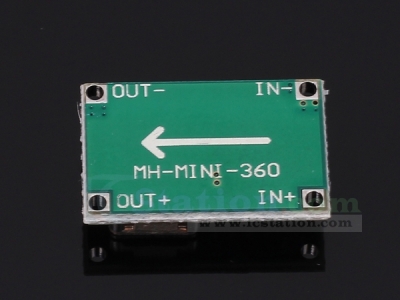

  • Model Name: Mini-360 (ultra small size DC-DC synchronous rectifier buck module)
  • Module Properties: non-isolated buck
  • Rectification: synchronous rectification
  • Input voltage: 4.75V-23V
  • Output voltage: 1.0V-17V
  • Output Current: lowering the value of 3A, long 1.8A
  • Conversion efficiency: 96% (maximum)
  • Switching Frequency: 340KHz
  • Output ripple: 30mV (no-load)
  • Load regulation: +/- 0.5%
  • Voltage regulation: +/- 2.5%
  • Working temperature: -40 ℃ to +85 ℃
  • External dimensions: 17 * 11 * 3.8 (L * W * H) (mm)
  • Features: Use integrally molded power inductor and synchronous rectifier control chip, smaller and more efficient.

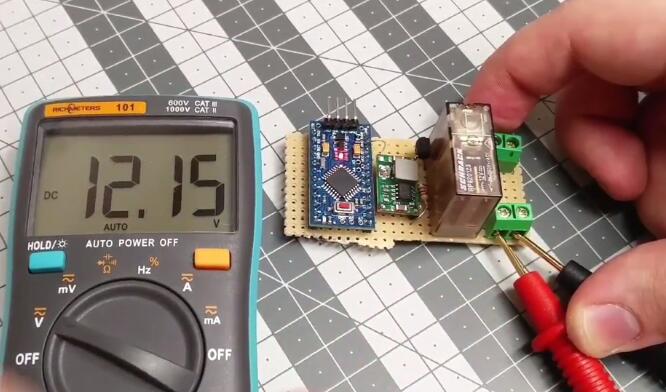

Tested by ICStation's Outstanding Partner Hugatry's HackVlog:

Quantity5+10+30+
Price$3.30$3.10$2.80
There are currently no product reviews.
