Bluetooth Amplifier Board 50W+50W Audio Amp Stereo APP/Infrared Remote Control for DIY Speakers

GY21316-1
5 9
$21.99 $15.39
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

1.Description:
XY-X50L is a 50W+50W Dual Channel Stereo Bluetooth 5.1 Audio Amplifier Module which also can be controlled by APP Sinilink and infrared remote controller. It can modify the Bluetooth name and password, also can turn ON/OFF Bluetooth prompt tone. 2.0 channels audio signal output. Built-in amplifier module therefore it can connect to loudspeaker directly. It is ideal for DIY wireless Bluetooth speakers and transponders.

2.Features:
1>.Bluetooth APP Control: It can not only be used as an ordinary Bluetooth receiver, but also use the special Bluetooth APP SiniLink to achieve the play state switching and sound quality playback. In particular, it can support the modification of the Bluetooth name and set the Bluetooth pairing password which greatly improving the safety of the use of the product. At the same time, the Bluetooth prompt tone can also be turned ON or OFF as your needs.

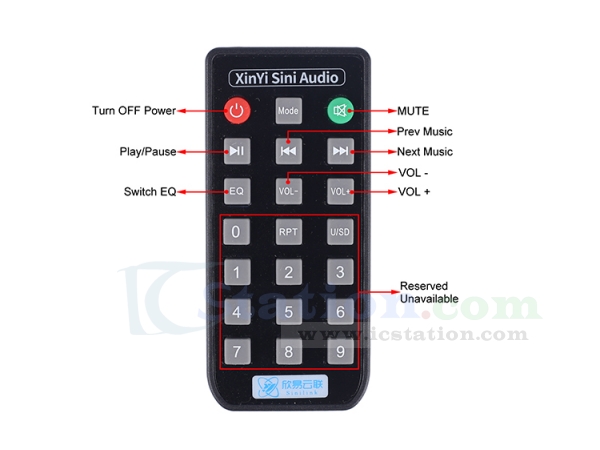

2>.Remote Control : It uses an infrared remote control with silicon rubber buttons which can improve user experience. It can adjust the volume, switch music, switch sound effects, and also mute and turn off the power which can implement remote control and more convenient operation.

3>.Bluetooth/AUX/U-disk: It can not only receive music via Bluetooth, but also via AUX and U-disk to fit different needs. It is capable of playing WAV, FLAC, APE, MP3 music files. Independent power switch to control its working status at any time.

4>.50W+50W Dual Channel Stereo: It has a built-in amplifier chip to provide 15W*2 drive capability with DC 9V-24V work voltage.Recommended to use more than 5A current to get more clear, bright and high fidelity sound.

5>.Easy and fast operation: It only needs to connect the matching power supply and speaker to start working. The on-board 360° infinite tuning potentiometer can not only adjust the volume, but also playing and pause easy and fast operation.

6>.Protection Function: It has multiple protection mechanisms to ensure its safe operation with over-voltage protection, under-voltage protection, over-current protection, short-circuit protection, overheating protection, clipping protection.

3.Functions:
1>.Bluetooth APP Control
2>.Infrared Remote Control
3>.Independent Power Switch
4>.Bluetooth/AUX/U-disk Audio Input
5>.50W+50W Dual Channel Stereo
6>.ON/OFF Prompt Voice
7>.Modify Bluetooth Name
8>.ON/OFF Bluetooth Password
9>.Modify Bluetooth Password
10>.Adjust Volume for Prompt Voice
11>.360° Infinite Adjust Volume
12>.RCA Audio Interface

4.Parameters:
1>.Work Voltage:DC 9V-24V(12V or more recommended)
2>.Work Current:>5A
3>.Unique function:Sinilink APP control
4>.Channel:2.0 channel stereo output
5>.Bluetooth:BLE 5.1
6>.Audio input type:Bluetooth/AUX/USB
7>.Audio output type:Left/Right
8>.Adjust volume:360° Potentiometer adjustment
9>.Output power:10W*2 at 12V 8ohm;20W*2 at 12V 4ohm;30W*2 at 24V 8ohm;50W*2 at 20V 4ohm
10>.Communication distance:15meter(Max)
11>.Over temperature protection:Yes
12>.Short circuit protection:Yes
13>.Over voltage protection:Yes
14>.Under voltage protection:Yes
15>.Clipping protection:Yes
16>.Work Temperature:-20℃~85℃
17>.Work Humidity:5%~95%RH
18>.Module Size:78*52*35mm

5.Use steps:
1>.Choose the right speakers and connect as shown in wiring diagram.
2>.Connect to right power supply from DC-005 power socket.LED indicator will flashing and it means that module enters pairing mode.And then speak prompt voice and it means that module is waiting for pairing.
3>.Turn ON power supply switch.
4>.Turn ON Bluetooth on phone.
5>.Select Bluetooth device ‘XinYi’ or modified name in your Bluetooth device listing.
6>.LED indicator will keep ON and it means that module is successfully connected and is waiting for playing.
7>.XY-X50L will playing music after select music on phone.LED indicator will keep slowly blinking.
8>.Adjust potentiometer to change volume as you need.
9>.Open APP Sinilink and register an account if need control by APP. Note: You can choose to log in as a tourist without registering.
10>.Click the dot in the left to add device.
11>.Select ‘Bluetooth devices’ and then Search Bluetooth.
12>.Select devices ‘Sinilink-APP’ or ‘XinYi’ or ‘XYV122V....’ to connect module.
13>.User can adjust volume, select next or previous, play/pause, select EQ, reset name, enable/disable/set password, enable/disable Bluetooth prompt tone.
14>.XY-X50L will speak prompt voice if disconnected.

6.Application:
1>.Modified/repair/replace speaker
2>.Amplifier equipment for training/activity site and so on
3>.Car Bluetooth device
4>.Music Festival Party
5>.Family entertainment and leisure
6>.Games and Cinema

7.Note:
1>.The power amplifier board should be as far away as possible from the WIFI signal (router) avoid signal interference.
2>.It is power supply voltage DC 9V-24V with more than 5A current.
3>.It is recommended to use a working power supply of more than 12V.
4>.Please don’t use too long wires to avoid signal interference.
5>.There can be enough power output only when the audio input is sufficient and the power supply voltage/current input is sufficient.
6>.The higher the power supply voltage, the greater the output power.
7>.The smaller the impedance of the speaker, the greater the output power. It is recommended to use 4ohm speaker.

8.Package:
   1pcs XY-X50L 50W+50W Stereo Bluetooth 5.1 Amplifier Module
   1pcs Infrared Remote Controller
   1pcs RCA to AUX Audio Wire
   1pcs AUX Audio Wire
