5V MP3 WMV Bluetooth-compatible Communication Decoder Board 3W Stereo Power Amplifier Module with Remote Control

11646
5 1
$8.69 $6.08 (only 0 pcs )
Contact us for wholesale price
Time Remaining:

Sold out


Product Introduction:
1.Power Supply Voltage:3.6-5V;3W stereo power amplifier output (BTL output,no common GND,cannot connect with other amplifiers for use)
2.Mul-function:bluetooth receive;hands-free call;fast forward/fast backward;insertation MP3 play;AUX function;radio function
3.Self-equipped with bluetooth audio receive module;after cellphone and bluetooth module has matched successfully,cellphone can play MP3 or bluetooth can send loseless APE file to bluetooth receive module to play;support hands-free call;support playing MP3 document in U-disk or SD card;support radio playing

Note:
    MINI USB-IN can not be used directly if not connected to the battery.Must connect the battery at first, then use MINI USB IN. Otherwise it may damage the decoder board.


Bluetooth Function Operation Method:

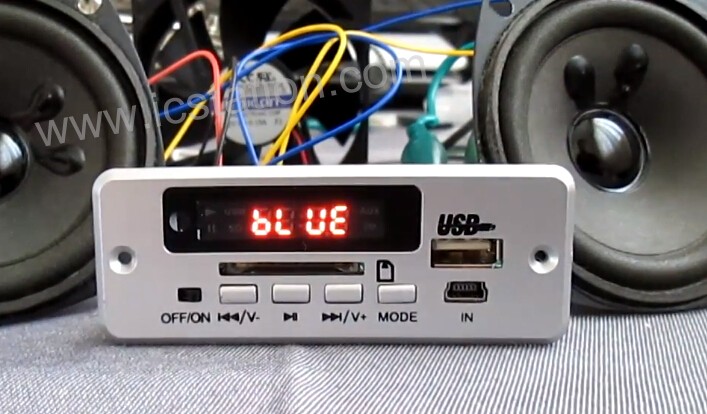

1.Press "MODE" key to switch state  to "BLUE"
2.Open audio device with bluetooth function,search "ZTV-CT02EA" and connects with it
3.Volume can be controlled by external connection sound source device;or long press "PREV" and "NEXT" to adjust vlume
4.When there is call in,short press "Play/Pause"is for answering the phone and long press is for rejecting
5.When you want to call someone or in calling state,short press "Play/pause" is hanging up
6.Note:if current state is mute and there is call in,then it will release the mute state

Power On/off:
1.Power on:remove the power switch to "ON" position
2.Power off:remove the power switch to "OFF" position

MP3 Play:
  1)When power on,plug the U-disk or SD card which copied MP3 songs,and the machine will automatically recognize and play
  2)"PREV":short press will play the previous song;long press will decrease the volume
  3)"Play/pause":press the first time will stop the current playing song;press again will restore to playing state
  4)"NEXT":short press will play the next song;long press will increase the volume
  5)"MODE":mode selection;switch SD card,U-disk,clock,FM,bluetooth,LINE mode

FM Mode:
  1)When press "MODE" key to switch into FM state.PREV:short press will search radio station from up to down,long press will decrease the volume;
"Play/pause":short press will automatically search and memory the radio station;
"NEXT":short press will search the radio station from down to up,long press will increase the volume

Line Mode:
  1)When press "MODE" key to switch into Line state,voice source is input by "Line/DC";and volume is controlled by external connection device.
You can also adjust volume by pressing "PREV" or "NEXT" key

Clock Adjustment:
  1)When press "MODE" key to switch into Clock state,press "Play/pause" key to select hour or minute;then the chosen part is flashing,if press "PREV" or "NEXT" again can achieve time adjustment

Bluetooth Mode:
  1)When press "MODE" key to switch into Blue state,open the audio device with bluetooth function;search for "ZTV-CT02EA" and connect with it;
volume is controlled by external connection device.You can also adjust volume by pressing "PREV" or "NEXT" key.
When there is call in,short press "Play/pause" is for answering the phone,long press is for rejecting.
  2)If you want to call someone or in calling state,short press "Play/pause" is for hanging up

Remote Control Operation:
  1)In bluetooth state
    Power Switch:fake power off
    Mode Switch:the same as MODE key,switch mode (bluetooth->MP3->FM->Clock->bluetooth)
    Mute:press is for mute/unmute;please note that if the current state is mute and there is call in,then it will release the mute state
    Play/pause:the same as PCBA board function
    PREV:the same as PCBA board function
    NEXT:the same as PCBA board function
    Vol-:the same as PCBA board function
    Vol+:the same as PCBA board function
    Cycle:number repeat calling

MP3 State:
   1)PREV:short press for previous song;long press is for fast backward
   2)NEXT:short press for next song;long press is for fast forward
   3)Cycle:switch single loop to list loop

Clock Adjustment:
   1)When press "Time" to switch into "Clock" state,press "Time" key to choose hour or minute,then the chosen part is flashing;if press "PREV" or "NEXT" key again is for time adjustment


I. Tested by ICStation's Outstanding Partner ELECTROJUANYU:

Learn More Details in the Video:
(The language in the video is Spanish)

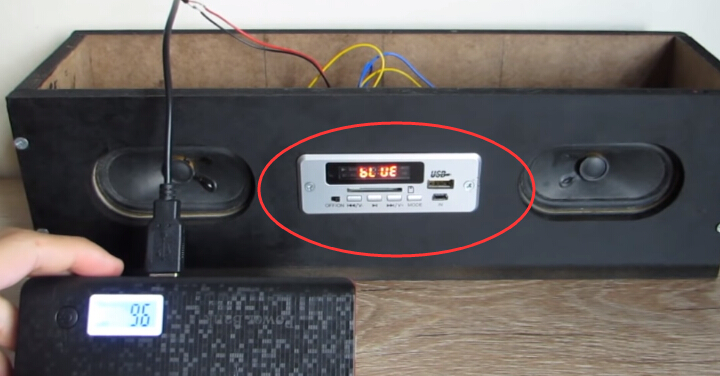

II. Tested by ICStation's Outstanding Partner RobertNetworks:

Learn More Details in the Video:
(The language in the video is Spanish)

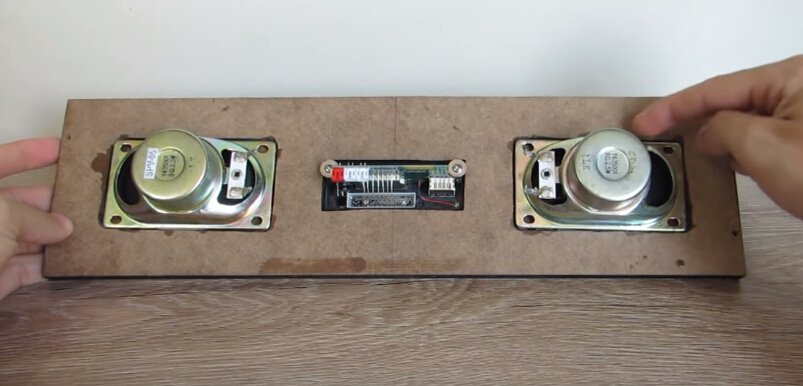

III. Tested by ICStation's Outstanding Partner Ideatronic:

Learn More Details in the Video:
(The language in the video is Spanish)




IV. Tested by ICStation's Outstanding Partner Ideatronic:

Learn More Details in the Video:
(The language in the video is Spanish)
