DIY 4-Digit Red Digital Ammeter Kit ICL7107 DC 5V 35mA Ammeter DIY Soldering Kit

11878
5 9
$5.99 $4.19
Quantity10+30+50+
Price$4.15$3.99$3.70
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

Product Introduction:

1.Model: AMM-TE
2.PCB Size: 70.6*39mm
3.Display Window Size: 51*24mm
4.Operating Voltage: DC 5V
5.Operating Current: 35mA
6.Measurement Precision: +/-1mA
7.Measurement Range: 0-2A
8.Overrange Display: the first bit displays 1 or -1
9.Display Color: Red

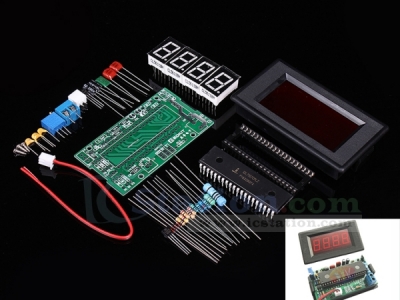

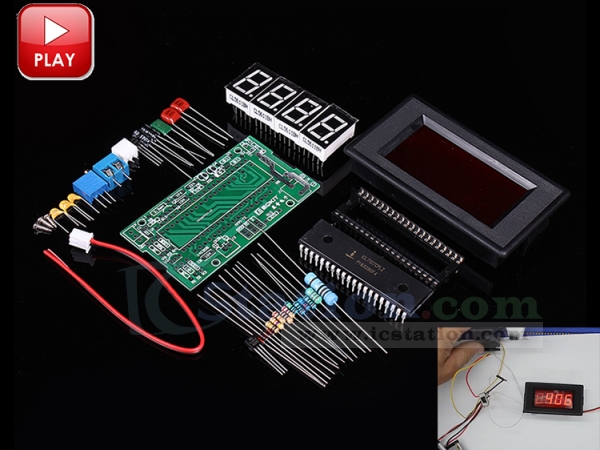

Packing List:

Name Specification Code Quantity
Metal Film Resistor 0.1 ohm/2W R5 1
Metal Film Resistor 2K ohm R1,R9 2
Metal Film Resistor 56K ohm R2 1
Metal Film Resistor 1M ohm R6 1
Metal Film Resistor 100 ohm R3 1
Metal Film Resistor 270 ohm R10 1
Metal Film Resistor 20K ohm R8 1
Metal Film Resistor 47K ohm R7 1
Metal Film Resistor 100K ohm R4 1
Monolithic Capacitor 100pF C1 1
Monolithic Capacitor 0.1uF C8 1
Monolithic Capacitor 0.47uF C4 1
CBB Capacitor 0.1uF C2 1
CBB Capacitor 0.22uF C5 1
Polyester Capacitor 0.01uF C3 1
Electrolytic Capacitor 10uF/25V C6,C7 2
Diode IN4148 D1,D2,D3 3
Stabilivolt Diode ST5V1 ZD1 1
Triode C1815 Q1 1
Inductor 2.2mH L1 1
Digital Tube 1 bit Common Anode Red DS1-DS4 4
IC ICL7101 U1 1
IC TL431A U2 1
Potentiometer 3296 1K ohm VR1 1
IC Socket 40P U1 1
Connection Terminal 2P J2 1
Connection Terminal 301-2P J1 1
Power Wire 2P Single Head   1
PCB 70.6*39mm   1
Filter Board 1   1
Shell 79*43mm   1
Screw M1.7*6mm   4


Circuit Diagram:


Circuit Principle:

AMM-TE ammeter is mainly composed of ICL7107, power circuit, reference voltage source,
input circuit and display circuit.
1. ICL7107 is a BCD output integral type A/D conversion chip, its internal includes; linear amplification, analog switch, oscillation, display driving etc.
2. Power circuit is divided into positive power and negative power; positive power is input by J2,C8 filtering; negative is composed of R8,Q1,L1,C6,C7,D2,D3 and ZD1, and generate -5V voltage is input by chip 26th pin.
3. Reference voltage source is composed of R1,R2,VR1,R9 and U2; 36-pin is reference voltage input pin; adjust VR1 potentiometer to let 36-pin voltage be 100mV.
4. Input circuit is composed of J1,R5,R6 and C3. When the current of measured circuit passes through R5, it will generate a voltage on R5; this voltage will be input to chip 31-pin through R6 current limiting and be processed; C3 is input voltage filtering capacitor.
5. Display circuit is composed of DS1-DS4,D1,D4;4 digital tubes can be drived directly by the chip, R10 is current limiting resistance of DS1-DS3 digital tubes decimal points.

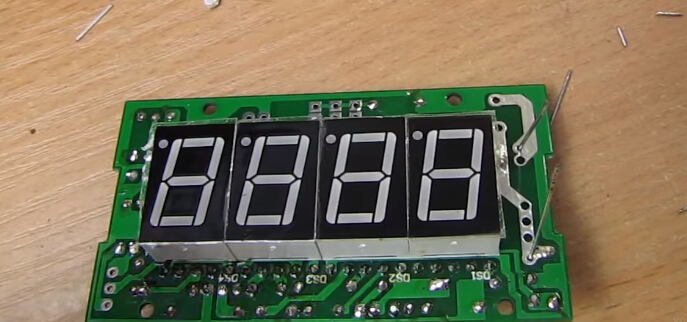

Finished Product Debugging:

1. After connecting with DC 5V (please notice the polarity), the digital tube will display -.000 or .000,this is normal.
2. Use multimeter to measure the voltage between chip 36-pin and 35-pin,and adjust VR1 potentiometer let it be 100mV


Key Points Voltage Reference Value:

1.Chip 1-pin and 21-pin voltage 5V
2.Chip 36-pin and 21-pin voltage 100mV
3.Chip 26-pin and 21-pin voltage -5V


I. Tested by ICStation's Outstanding Partner ELECTROJUANYU:









Learn More Details in the Video:
(The language in the video is Spanish)



II. Tested by ICStation's Outstanding Partner arduinoLab:

Learn More Details in the Video:
(The language in the video is Russian)
