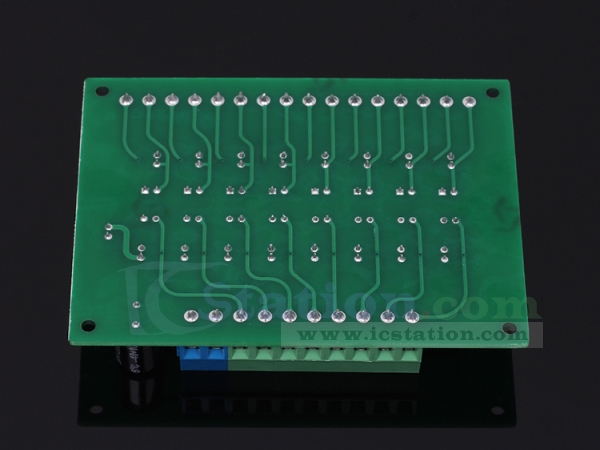

5V to 24V 8-Channel Photoelectric Isolation Module Level Voltage Converter PNP Output PLC Signal Module

11589
5 9
$11.99 $8.39
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

Product Introduction:
1.Adopt optocoupler
2.Limit Conversion Frequency:20KHz
3.Appearance Size:85*98*18mm
4.Applications:
For signal isolation;MCUs and PLCs level conversion of signals;transform PNP,NPN singal into PNP signal;signal level voltage convert

Pin Definition:
1).1+:the first channel signal input positive
2).1-:the first channel signal input negative
3).2+:the second channel signal input positive
4).2-:the second channel signal input negative
5).3+:the third channel signal input positive
6).3-:the third channel signal input negative
7).4+:the fourth channel signal input positive
8).4-:the fourth channel signal input negative
9).5+:the fifth channel signal input positive
10).5-:the fifth channel signal input negative
11).6+:the sixth channel signal input positive
12).6-:the sixth channel signal input negative
13).7+:the seventh channel signal input positive
14).7-:the seventh channel signal input negative
15).8+:the eighth channel signal input positive
16).8-:the eighth channel signal input negative
17).VCC:DC power supply positive
18).GND:DC power supply negative
19).O1:the first channel signal output
20).O2:the second channel signal output
21).O3:the third channel signal output
22).O4:the fourth channel signal output
23).O5:the fifth channel signal output
24).O6:the sixth channel signal output
25).O7:the seventh channel signal output
26).O8:the eighth channel signal output
