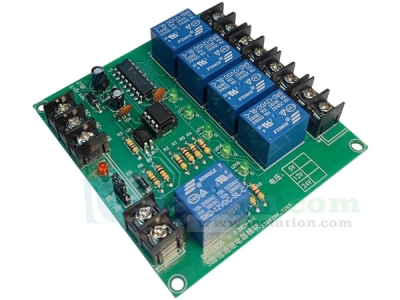

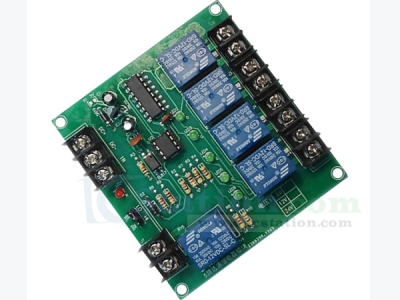

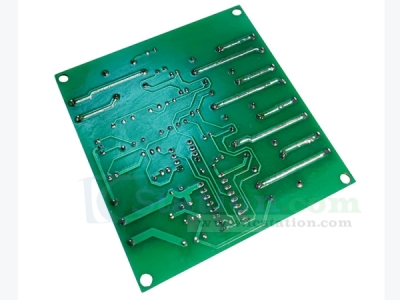

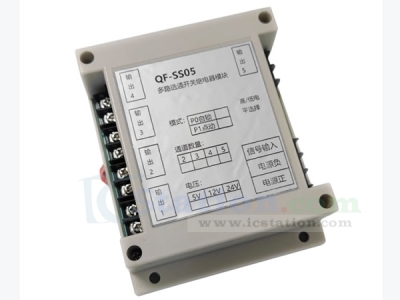

DC 12V 5-Channel Self-locking Relay Module 5Bit 10A High/Low Level Trigger Select Switch Controller

GY20640
5 9
$11.99
Contact us for wholesale price
- OR - - OR - Add to Wish List

1.Description:
  It is a latching relay module.It has 5 relay channels and can connect 5 loads.

2.Feature:
  1).The self-locking relay module has a power indicator and a working indicator,and the working status of the module can be observed through the indicator.
  2).The response speed of the switch relay module is short,only 30mS.
  3).The 5-way relay module has a long service life and supports 100,000 times of 10A full load and 10 million times of no-load.

3.Parameter:
  1).Product Name:Latching Relay Module
  2).Working Voltage:DC 10V-15V
  3).Rated Voltage:DC 12V
  4).Module Power Consumption:15mA (quiescent current),60mA (working current)
  5).Response Speed:30mS (signal width/key duration)
  6).Output Mode:passive (relay COM NO contact output)
  7).Output Current:10A (voltage does not exceed DC 30V)
  8).Control Mode:switch quantity or level
  9).Anchor Hole Diameter:3.8mm
  10).Work Temperature:-25℃~85℃
  11).Work Humidity:5%~95%RH
  12).Size:91*86*20mm

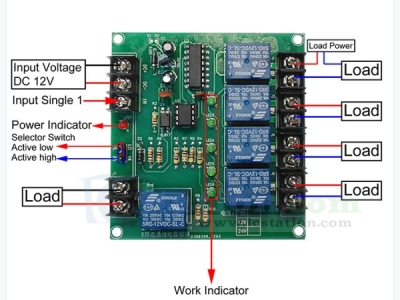

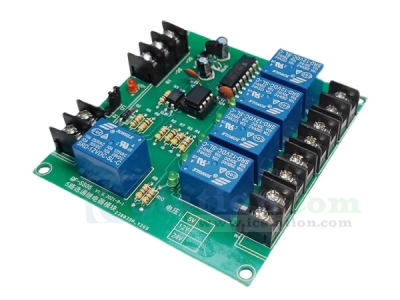

4.Terminal Introduction:
  1).DC+:Positive pole of module power supply
  2).DC-:Negative pole of module power supply
  3).IN:signal input
  4).1-5:5 output ports

5.Power Indicator:
  1).Red:Power indicator
  2).Green:Working indicator

6.Uses:
  1).Signal gating
  2).Load selection
  3).Sequence start of industrial equipment

7.Power Supply Method:
  1).To supply power to the module,the voltage value must match the specified voltage of the module.
  2).Supply power to the load,the voltage and the load are matched.
    2.1).It can be the same power supply as the module power supply
    2.2).Each channel can be powered individually or partially shared.

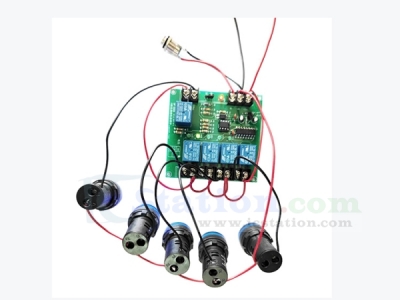

8.Usage:

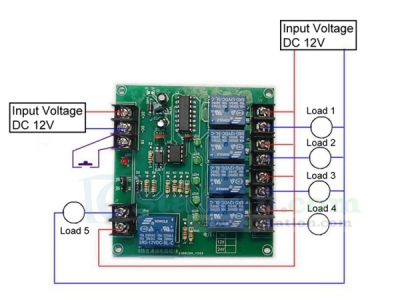

   1).Control each output circuit through the input signal,such as inputting a signal,1-way load works;inputting a signal again,2-way load working;inputting a signal again,3-way load working;input the signal again,the 5-way load will work;input the signal again,the 5-way load will work,and the cycle will work.

9.Package:
   1pcs Latching Relay Module
