DC 12V 24V Self-locking Relay Module ON OFF Bistable Switch Controller

GY20805-1
5 9
$6.99
Contact us for wholesale price
- OR - - OR - Add to Wish List

1.Description:
   It is a DC 12V 24V Self-locking Relay Module ON/OFF Bistable Switch Controller.

2.Feature:
  1>.Anti-reverse protection
  2>.Power off hold function
  3>.Wide voltage input

3.Parameter:
  1>Model: QF-KM01
  2>.Product name: One power off keep model self - locking relay
  3>.Function: Switch output state with each power-on

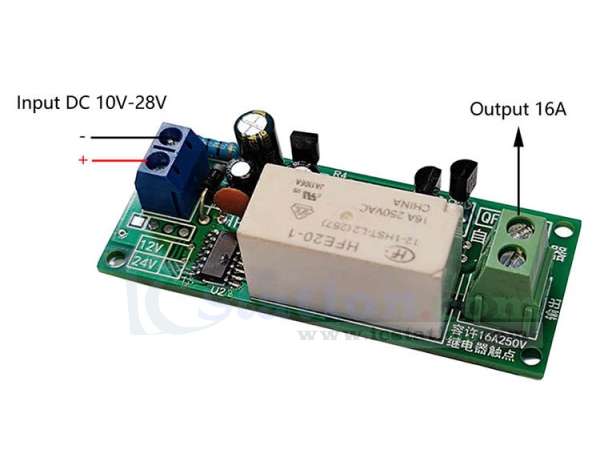

  4>.Voltage: DC 10V-28V
  5>.Work current: 50mA (Based on 12V)
  6>.Standby current: 6.5mA
  7>.Output mode: A group of relays normally open + normally closed, no power output
  8>.Capacity of output: 16A 250Vac

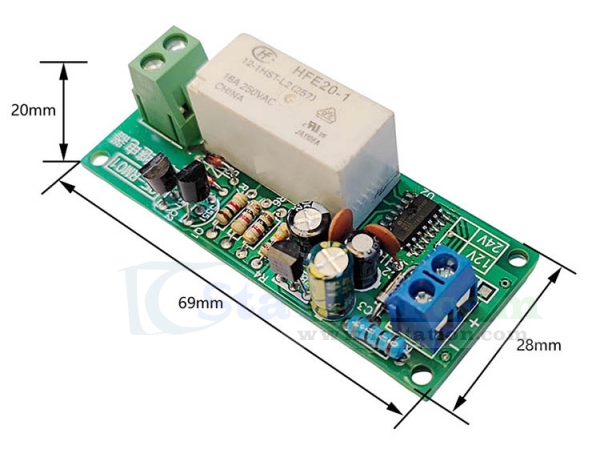

  9>.Size: 69*28*20mm
  10>.Work temperature: -30℃~75℃
  11>.Work humidity: 0~90%RH No condensation
  12>.Voltage deviation: Allowed to work between 10V and 28V
  13>.Time of action: 0.8S~1.2S
  14>.Frequency: Two seconds @24V each time, pay attention to the power supply speed, voltage and other factors related
  15>.Power off hold: Yes, Remaining in the final state when output is powered off

4.Package:
  1pcs One power off keep model self-locking relay
