DC 12V 10minute Delay Relay Module 10A Switch Controller Adjustable Trigger Delay Circuit Board

15148
5 9
$4.99 $3.74
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
Share
1.Description:

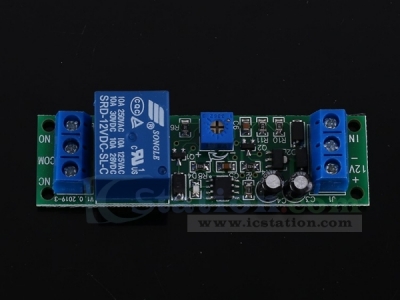

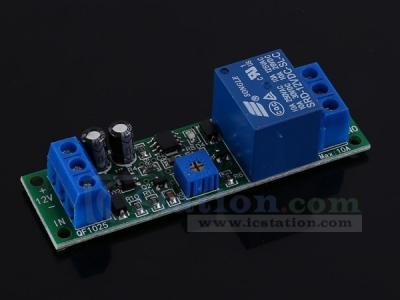

  QF1025 is a trigger delay module.User can adjust delay time by potentiometer to meet require.

2.Feature:
  1>.Low level trigger
  2>.Support input reverse connection protection
  3>.Support high power load

3.Parameter:
  1>.Model: QF1025
  2>.Work Voltage:DC 12V
  3>.Work current:50mA
  4>.Stand-by current:3mA
  5>.Delay time:5second~10minute
  6>.Load voltage:DC 30V or AC 250V
  7>.Load current:10A(Max)
  8>.Work Temperature:-25℃~85℃
  9>.Work Humidity:5%~95%RH
  10>.Size:70*20*19mm

4.Function:
  1>.Output turn ON and start delay when get a trigger signal at input.Then keep ON during delaying.The turn OFF after delay.
  2>.The second trigger signal is not available during the delay period.

5.Package:
  1pcs QF1025 5s~10min Trigger Delay Relay Module
