LM393 5V 1Bit Voltage Comparator Single Channel Relay Control Circuit Module

14753
5 9
$8.50 $5.95
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
1.Description:
  It is a DC 5V 1Bit Voltage Comparator Module.It controls the output state of the relay by comparing the two voltages.

2.Features:
  1>.Settable reference voltage
  2>.Inputs can be selected one or two
  3>.Three function options
  4>.Relay control output

3.Parametes:
  1>.Working voltage: DC5V
  2>.Work current:5mA
  3>.Standby current:5uA
  4>.Operating Temperature:-20℃~85℃
  5>.Operating Humidity:5%~95%RH
  6>.Module Size:63*38*19mm

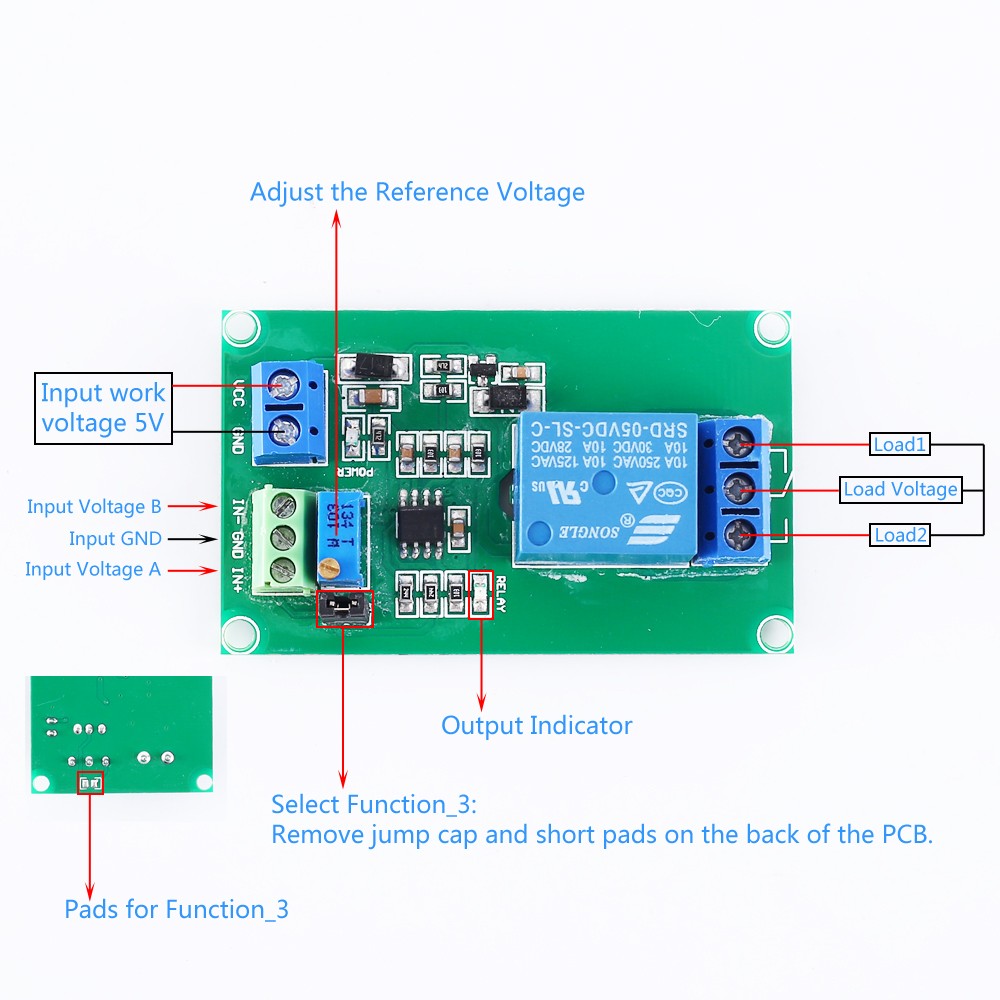

4.Functions:
  1>.Function_1: Compare the Input Voltage and the Reference Voltage.The Reference Voltage can be set by potentiometer.Relay output will turn ON if the Input Voltage is more than the Reference Voltage.Relay output will turn OFF if the Input Voltage is less than the Reference Voltage.
  2>.Function_2: Compare the Input Voltage A and the Input Voltage B.Relay output will turn ON if the Input Voltage A is more than the Input Voltage B.Relay output will turn OFF if the Input Voltage A is less than the Input Voltage B.
  3>.Function_3: Compare the Input Voltage and the Reference Voltage.Its function is opposite to function_1.This function needs remove jump cap from module and short pads on the back of the PCB.The Reference Voltage can be set by potentiometer.Relay output will turn ON if the Input Voltage is less than the Reference Voltage.Relay output will turn OFF if the Input Voltage is more than the Reference Voltage.
  4>.Adjust the Reference Voltage: It comes from module's work voltage.Its adjust range is 0~5V.

5.Application:
  1>.Automotive circuit modification
  2>.Industrial equipment
  3>.Test test
  4>.Circuit application test

6.Package:
  1pcs LM393 5V 1CH Voltage Comparator
