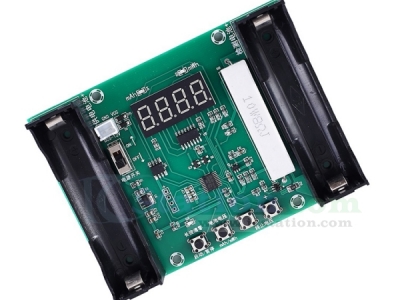

Battery Capacity Tester mAh mWh for 18650 Lithium Battery Voltage Discharge Capacity and Discharge Energy

GY16328
5 9
$11.50 $7.71
Quantity3+5+10+
Price$7.99$7.75$7.50
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
1.Description:
  It is a Lithium battery capacity tester.It is used to test the voltage, discharge capacity and discharge energy of a 18650 lithium battery.

2.Feature:
  1>.Dual working power supply
  2>.18650 battery special tester
  3>.Support display discharge capacity
  4>.Support display discharge energy
  5>.Support parameter memory function

3.Parameter:
  1>.Model: XH-M240
  2>.Work Voltage:DC 5V~12V or 18650 battery
  3>.Stand-by current:5~7mA
  4>.Discharge current:500mA
  5>.Load power: 10W 8ohm
  6>.Measuring voltage accuracy:0.1V
  7>.Discharge capacity accuracy:1mAh
  8>.Discharge energy accuracy:1mWh
  9>.Work Temperature:-25℃~85℃
  10>.Work Humidity:5%~95%RH
  11>.Size:110*80*25mm

4.18650 battery introduction:
  1>.The rated voltage of the 18650 battery is generally 3.7V.
  2>.The discharge stop voltage of the 18650 battery is generally 2.75V.
  3>.It should start charging the battery when the voltage of the 18650 battery drops to 0.875 times(3.24V) the rated voltage.
  4>.Excessive battery discharge will reduce battery life.
  5>.It is recommended that the 18650 battery stop discharge voltage be set to 3.5V.
  6>.The charging voltage is generally 4.2V/4.3V/4.35V
  7>.Measuring time formula.The discharge current of this product is 500mA.If the battery capacity is 2000mAh.Then the measuring time is about (2000/500) 4 hours.

5.Use Steps:
  1>.Connect work voltage DC 5V~12V from white XH2.54-2P socket or install a 18650 battery at left battery socket.
  2>.Install a measured 18650 battery at right battery socket.
  3>.Turn on power supply switch. Then the screen will display current battery voltage.
  4>.Set discharge stop voltage.Press button + and - to set discharge stop voltage.Parameters can be saved automatically.It is recommended that the 18650 battery stop discharge voltage be set to 3.5V.
  5>.Short press the first(left) button to start measuring.Then the LED indicator D3 will turn ON.
  6>.Short press the second button to switch dispaly capacity(mAh), energy(mWh) and voltage.
  7>.Long press first(left) button to clear dispaly capacity(mAh) and energy(mWh).
  8>.The battery is tested and shows the battery test value when D3 LED indicator start blinking.

6.Package:
  1pcs 18650 Battery Capacity Tester
Tested by ICStation's Outstanding Partner:


Learn More Details in the Video:
(The language in the video is German)



Learn More Details in the Video:
(The language in the video is English)
