DIY SMD Rotating LED Components Soldering Practice Board Skill Training DIY Kit

11007
5 9
$3.99 $2.79
Quantity5+10+30+50+
Price$2.60$2.30$2.10$1.59
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

Product Introduction:

1.Size: 90*60mm

2.Thickness:1.6mm

3.Flow Water Lamp Circuit: CD4017, NE888, LED; after correct connnection, it will operate

4.Operating Voltage: 3-12V

5. Board material: international standard sheet, all tin pad, high strength fire drop material, can be repeated disassembly.

6. PCB board design is reasonable, are commonly used in the SMD components.

7. The left and right of the three components are used to practice welding, each column with a test point.

8. The middle of the circular circuit for the water lamp circuit, by the CD4017, NE555, light-emitting diodes, welding power can work.

9. The circuit is also used on the back, a ruler to facilitate the measurement of components. There are examples of PCB conductors to facilitate the use of PCB design.

10. This kit contains all the elements of the following photos.


Packing List:

No. Name Parameter QTY
1 1206 Resistor Random 12
2 0805 Capacitor Random 12
3 0805 Resistor Random 12
4 0603 Resistor Random 14
5 0603 Capacitor Random 14
6 0402 Capacitor Random 14
7 0805 Resistor 1K ohm 15
8 LED   11
9 LED   4
10 Triode J3Y 4
11 Diode 4148 4
12 0805 Resistor 10K ohm 5
13 0805 Resistor 2M ohm 1
14 0805 Capacitor 0.1uF 2
15 IC NE555 1
16 IC CD4017 1

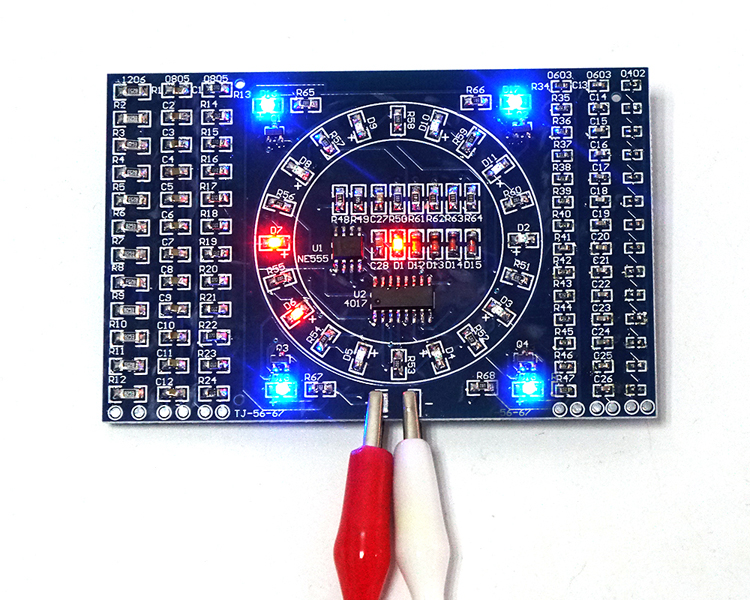

Finished Product Picture:
