Waterproof Ultrasonic Module JSN-SR04T Integrated Distance Measuring Transducer Sensor for Arduino [B80515]

5046
5 1
$12.99 $9.09
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

Description:

Electrical parameters: JSN-SR04T

Working voltage: DC 3.0-5.5V
Working current: <8mA
Acoustic emission frequency: 40khz
Farthest distance: 600cm
Nearest distance: 20cm
Distance accuracy: ±1cm
Module size: 42mm*29mm*12mm
Resolution: about 1mm
Angle: 75 degrees
Working temperature: -20℃—+70℃

Wire Connection:
1.3-5.5V(positive power supply)
2.Trig (control site) RX
3.Echo (output end) TX
4.GND (negative power supply)

Input trigger signal:
1.TTL pulse over 10uS
2.Serial port sends instruction 0X55

Output Echo signal: output Pulse width level signal, or TTL.

Product Features:
1, Small size, easy to use;
2, Low voltage, low power consumption;
3, High accuracy;
4, Strong anti-jamming;
5, Integrated with wire enclosed waterproof probe, suitable for wet, harsh measurement occasions.

Application:
1, Horizontal distance;
2, obstacle avoidance, automatic control;
3, the object approaches, there is a perceived
4, traffic control;
5, security, industrial control;
6, artificial intelligence, and research

Working Principle:
(1) using IO port TRIG trigger location, to the high level signal of at least 10us;
(2) module automatically sends 8 40KHz Fang Bo, automatic detecting whether a signal return;
(3) a signal return, a high level is output through the IO port ECHO, the time duration of the high level is ultrasonic from launch to return. The test distance = (high level time * speed of sound (340M/S)) /2;
This module uses the simple method, a control port with a 10US above high level, can wait for high level output at the receiving port. An output can drive the timer, when this port is low can read the timer value, this time for the location of the time, can be calculated distance. So constantly cycle test, that can achieve the measurement of the value of your mobile.

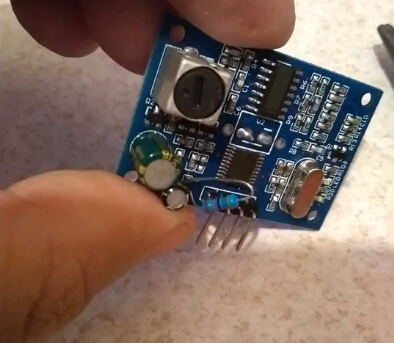

Module Features:




I. Tested by ICStation's Outstanding Partner LeRoy Miller:

https://github.com/kd8bxp/jsn-sr04t-2.0-car-sensor

Learn More Details in the Videos:
(The language in the video is English)




II. Tested by ICStation's Outstanding Partner Blue Matter:

Learn More Details in the Video:

Feedback

By
Rating: [5] 5 of 5 Stars! Date Added: 2015-03-19 08:05:21
Great product. Used it t monitor gates movement opening and closing. The wire is very long, 8 feet or almost 2.5m so is usable for long distance. I also tested with a longer wire add on, and the sensor works for longer distance in my case almost 10m of wire between sensor and the board. Great product and price for a waterproof sensor, would buy it again!
