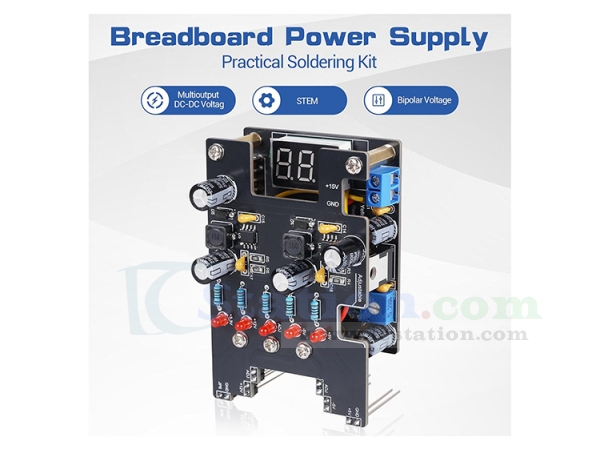

DIY Power Supply Board Soldering Kit, Universal 3.3V/+5V/-5V/12V/ADJ Voltage Output Regulator Step Down Buck Power Module for Soldering Practice Experiments and Testing

GY21761-1
5 9
$16.99 $11.89
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
Share

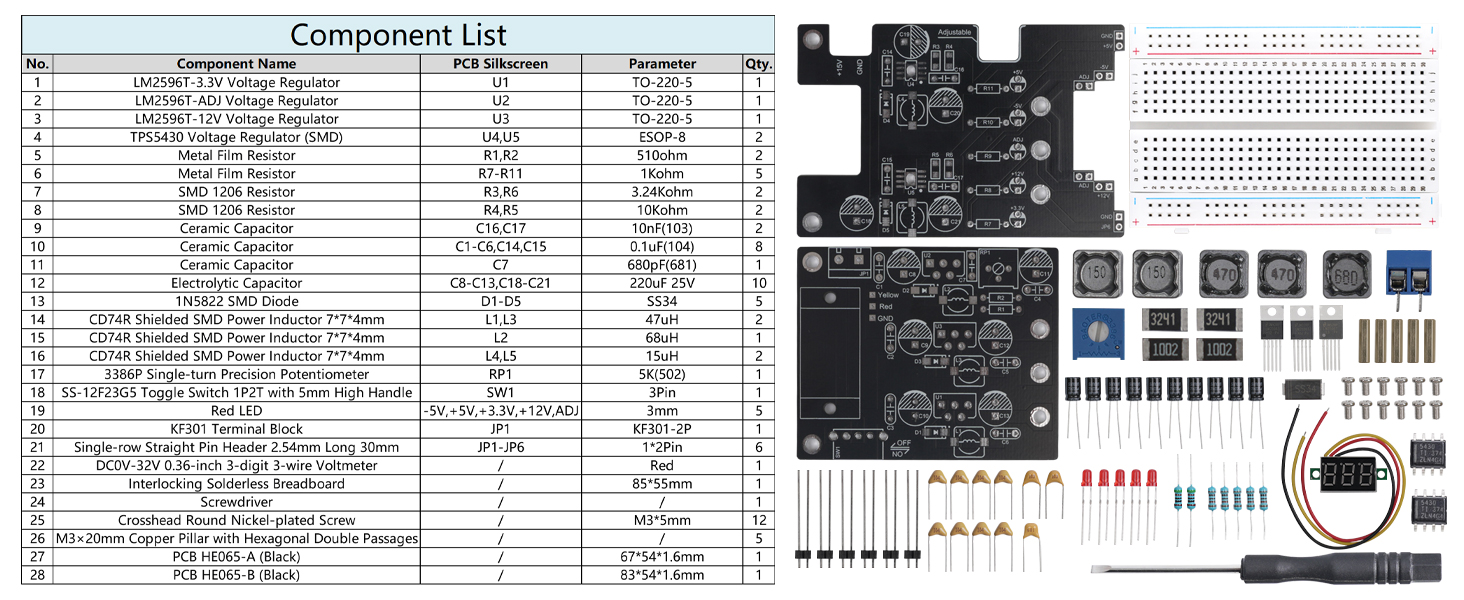

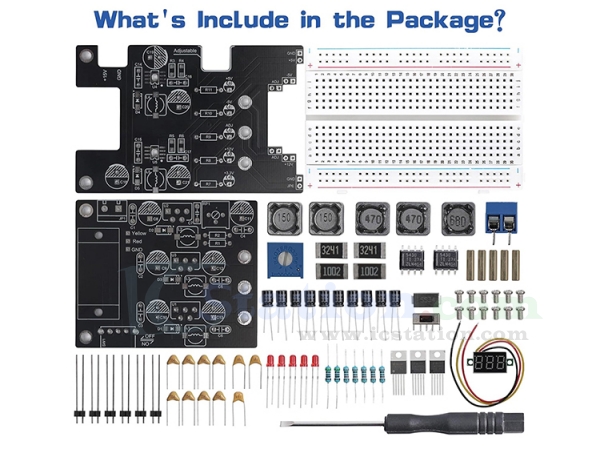

【PRACTICAL SOLDERING KIT】The power module kit features both surface-mount and through-hole components, making it an ideal soldering practice kit. Moreover, its wide range of applications after assembly adds to its versatility.

【Dual-Polarity Power Output】DIY Power Module features multiple power outputs, including 3.3V, ±5V, 12V, and adjustable voltage options. It can simultaneously meet the power supply needs of various electronic devices and projects.

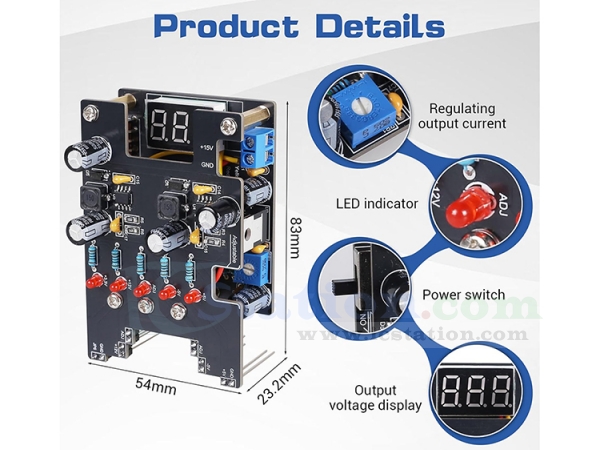

【ADJ Output Display】Power supply module features a digital display that clearly shows the voltage values when adjusting the output voltage. The maximum voltage display error is no more than 0.45V.

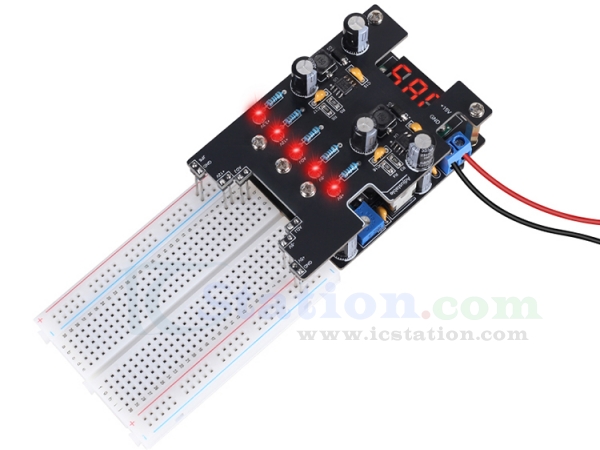

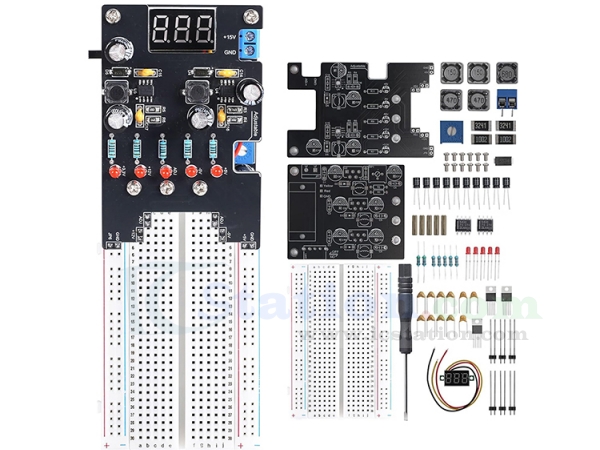

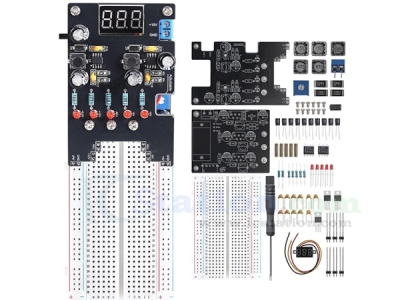

【POWER SWITCH AND BREADBOARD INCLUDED】DIY Power Module comes with a dedicated power switch and a breadboard. After soldering is completed, these features significantly enhance the convenience of your usage.



Specification

Features:

  1. Capable of simultaneously outputting different voltage values.
  2. Stable output of 3.3V, 5V, -5V, and 12V.
  3. Adjustable ADJ output voltage, ranging from a minimum of 2.24V to a maximum of 15V, via a knob.

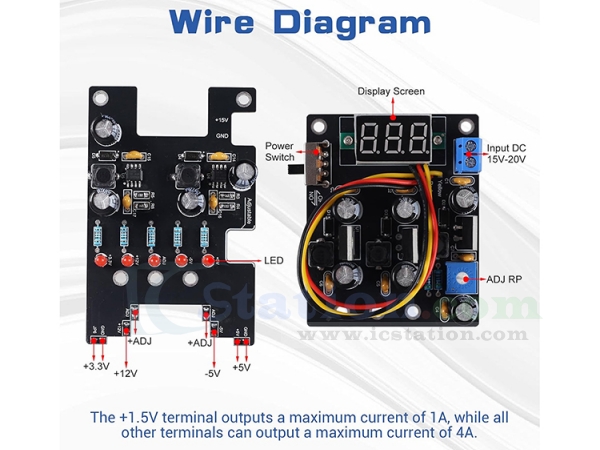

Note: After installation, connect the 15V power source to the terminal block near the chip to start using it.

The maximum input voltage should not exceed 20V, and the minimum should not be less than 15V.

It is recommended to use 15V (check the PCB for the +15V marking).



Operating Voltage DC 15V-20V
Operating Current No-load current: 60 mA
Power Supply Method Connect the 15V power source to the terminal block near the chip.
Operating Temperature -20°C to 85°C
Operating Humidity 5% to 85% RH
Dimensions 3.27 * 2.13 * 0.91 inch
