Home > Function Module > Voice Module > 8M Capacity Recordable Sound Module Push Button Activated Micro USB Button Cell Powered for DIY Gift Music Greeting Cards

8M Capacity Recordable Sound Module Push Button Activated Micro USB Button Cell Powered for DIY Gift Music Greeting Cards

GY17843
5 2
$10.79 $7.55
Quantity5+10+30+50+100+
Price$7.50$7.35$6.90$6.50$6.00
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

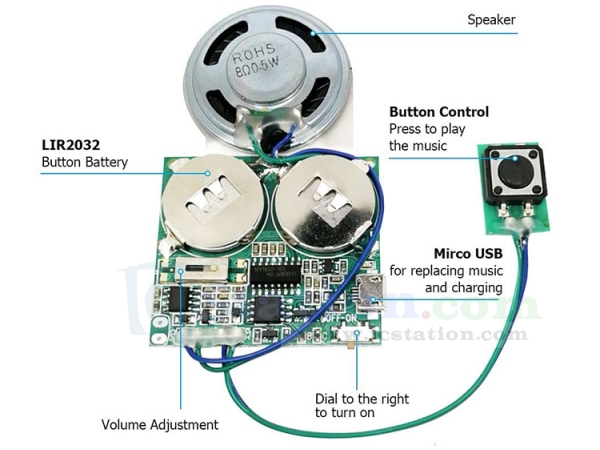

Description:

1.Push the button to play - Press the button, it will play the song/message in the module. Pressing again during playing will stop playing.

2.Easy to use - Plug it to your computer with a DATA USB cable. It is recognized by the computer as a USB drive, just like an MP3 player, and you're free to add any MP3/WAV audio file to the internal 8M storage.

3.Comes with button batteries LIR2032- No need any other big size battery or heavy power supply. Just press and play.

4.Compact body with self-adhesive- Its petite figure makes it easier to do more things. And the Self-adhesive on the back makes it easy to paste on whatever you want. It can hide in anything, such as music box, greeting card, photo frame and so on.



Basic Parameter:

Power Supply Voltage: 2x 3.6V button cells
Output: 0.5-1W
Size: 45*40mm Speaker Size: D36mm
RAM: 8M


How to use?

1.Turn on the switch
2..Press the button to play the default music
3.Press again to stop playing
4.Connect the module with a USB DATA cable to a Windows computer, then the computer will recognize it as a USB drive with about 8M limit.
5.Delete the default music in it and then replace it with your favorite mp3 music.
6.Plug off the USB cable and adjust the volume..


Note:

1.It will not play any music when it is connecting with the computer. Please pulg off the USB cable before you need it to play.
2.Make sure the switch is at ON position.
3.Convert the audio file to MP3 format. Adjust the volume.
4.Please use Windows computer.



Quantity5+10+30+50+100+
Price$7.50$7.35$6.90$6.50$6.00

Feedback

By
Rating: [5] 5 of 5 Stars! Date Added: 2021-11-24 15:49:55

With regard to the above question, here is our answer: 1. It can not change to the momentary switch, otherwise it can play normally only when the button is pressed. 2. The photosensor can be replaced with a button.

By
Rating: [5] 5 of 5 Stars! Date Added: 2021-11-22 20:51:44

I have a question that I hope you can answer, is it possible to replace the button with a momentary switch or just an on off switch so that it only plays when the switch is on. Also I was thinking that I could replace the light sensor on the light activated one with an on off switch but I dont know if that would fry the circuit.
