Intelligent Offline Speech Recognition Module Voice Recognition Control Switch Lights Chip Sound Control SU-10A Module

GY19551
5 9
$6.99 $4.89
Quantity3+6+10+
Price$4.85$4.70$4.55
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
1.Description:

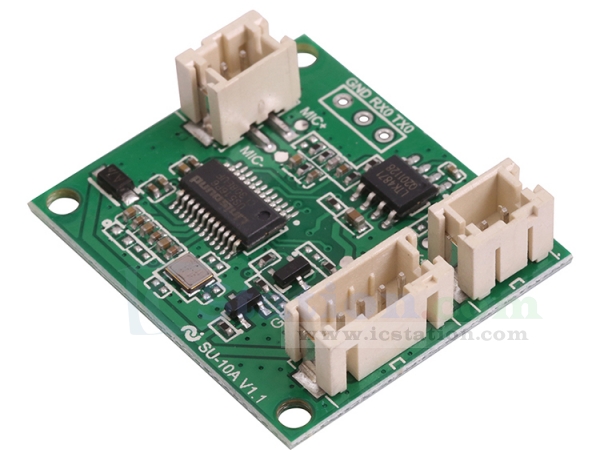

 It is a offline speech recognition module. SU-10A is a low-cost, low-power, small-size offline voice recognition module, which can be quickly applied to smart homes, all kinds of smart home appliances, toys, lamps and other products that require voice control.

2.Feature:
 1).32bit RISC core,running frequency 240M.
 2).Support DSP instruction set and FPU floating point arithmetic unit.
 3).FFT accelerator:supports up to 1024 points of complex FFT/IFFT operations,or 2048 points of real FFT/IFFT operations.
 4).Built-in high-speed SRAM,built-in 2MB FL ASH.
 5).Built-in 3W,mono AB power amplifier.
 6).Support 1 electret microphone.
 7).Support 5V power input.
 8).The default voltage of the UART interface is 5V,and it can also support 3.3V.

3.Parameter:
 1).Product Name:Offline Speech Recognition Module
 2).Connection method:PH2.0mm pitch connector
 3).Support interface:UART/MIC/SPEAKER
 4).Average Working Current:60mA
 5).Power Supply Voltage: 3.6V-5.5V
 6).Supply Current:200mA(Min)
 7).Work Temperature:-20℃~85℃
 8).Work Humidity:5%~95%RH
 9).Size:33*28*9mm

4.Support speaker specifications:
 1.Under VCC=5V,4ohm load,it provides up to 2.9W output power
 2.Under VCC=5V,8ohm load,it can provide up to 1.8W output power

5.Package:
 1pcs Offline Speech Recognition Module
Quantity3+6+10+
Price$4.85$4.70$4.55
