Digital Square Wave Pulse Signal Generator Adjustable PWM Frequency PWM Module Stepping Motor Driver Board 6Hz-100KHz

12192
5 9
$7.99 $5.91
Quantity5+10+20+
Price$5.40$5.20$4.80
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

Product Introduction:
1>. Model: YYPWM-1
2>. Frequency Range: 6Hz-100KHz adjustable
3>. Duty Cycle Range: 1-99% adjustable
4>. Power Supply Voltage: DC 3.3-20V
5>. PWM width = input voltage
6>. Output PWM Driving Capacity: via triode S8550 to drive, and driving current can be up to 100mA
7>. When there is no decimal point, HZ is the unit; when there is decimal point, the unit is KHZ;
  auto switch, no need manual adjustment.




Tested as Below:



I. Reviewed by ICStation's Outstanding Partner adrirobot:

https://www.adrirobot.it/Square_Wave_Signal_Generator/PWM_Signal_Generator.htm


II. Tested by ICStation's Outstanding Partner Ultr@ FX:

Learn More Details in the Video:
(The language in the video is German)

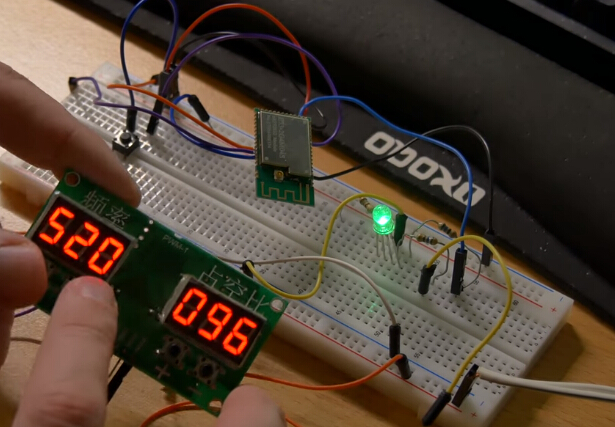

III. New! Tested by ICStation's Outstanding Partner DrakerDG:



Learn More Details in the Video:
(The language in the video is English)

Quantity5+10+20+
Price$5.40$5.20$4.80
