Home > Wireless Module > Bluetooth Module > DC 3.6-5V LED Light Control Module Bluetooth-compatible RGB Light Lamp Control Board Module for iOS/Android 4.2 Smart Home

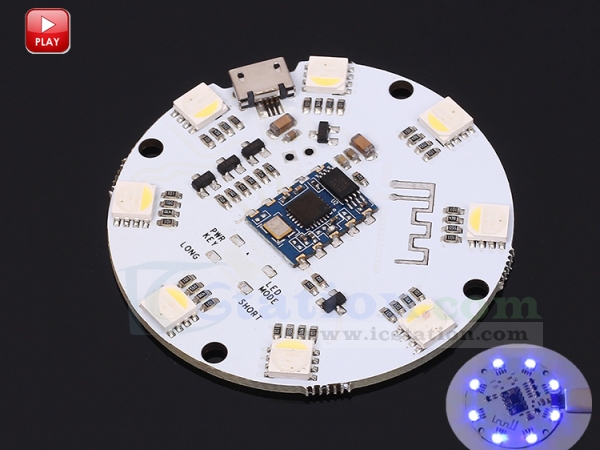

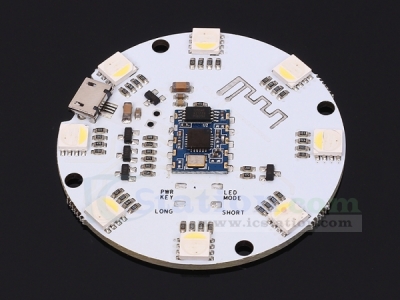

DC 3.6-5V LED Light Control Module Bluetooth-compatible RGB Light Lamp Control Board Module for iOS/Android 4.2 Smart Home

12050
5 9
$11.99 $8.39
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
Product Introduction:
1>. Bluetooth Version: Bluetooth V4.0 BLE
2>. Power Supply Voltage: DC 3.6-5V
3>. Current Consumption: 15mA;sleep mode 2uA
4>. Operating Temperature: -30~80 celsius
5>. Radio Frequency: 2.4GHz
6>. Support 250kbps,500kbps,1Mbps data transmission rate
7>. Size: 50*50mm
8>. PWM Operating Frequency: 20KHz
9>. Applications: for driving PWM LED lamp

Pin Definition:
1>. VDD: Power Interface (3.6-5V)
2>. GND: Power Ground
3>. PWM1: PWM1 output port, correspond Red
4>. PWM0: PWM0 output port, correspond Green
5>. PWM3: PWM3 output port, correspond Blue
6>. PWM2: PWM2 output port, correspond White
7>. GP23: GPIO23, preserve IO port, has no function
8>. GP22: power on/off interface; long press the power on or power off; low level valid
9>. GND: power ground
10>. ANT: antenna interface

Module Size Picture:


Principle Picture:




Notice:
1>. Port level is TTL level,and output high level is VDD.
2>. Input voltage is 3.6-5V.
3>. Please add a pull-down resistor when PWM output drive triode.

Note: The updated vesion of this module doesn't have button keys, the place is the position pointed by the arrow from below picture.
