Description:

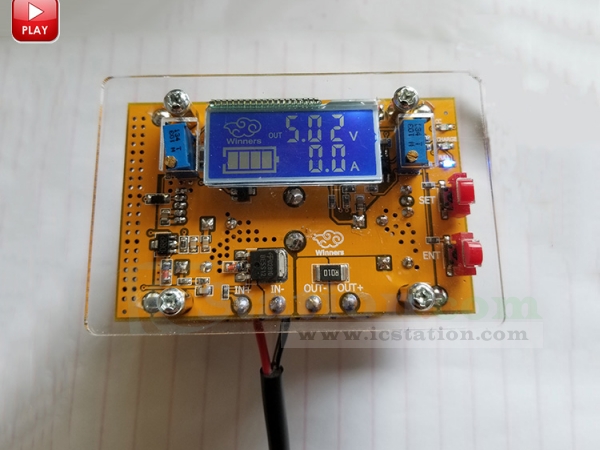

10A DC-DC High-Power Adjustable Step-down Module Voltage & Current Dual Display
Module Parameters:
Input voltage: 7v - 40v
Output voltage: 1.5-35V continuously adjustable (can only make step-down module USES, input must be greater than output 1.5 V above)
Output current: adjustable, the biggest 10 A (recommended in 8A use)
Output power: max150w (suggest use within 100 w, please reduce power when it is large pressure difference)
Working temperature: - 20 ~ + 75 degrees
Working frequency: 300 KHZ
Conversion efficiency: up to 95%
Short circuit protection: yes
Input reverse connect protection: no
Output anti-reflux: no
Installation method: 8pcs 3mm screw
Connection mode: terminals or welding terminals, VIN for the input, VOUT for the output
Module size:length 80mm width 53mm height 35mm
Weight: 132g
Setup Instructions:
Set key can set the display mode, which is divided into 3 kinds:
1.shows that the output voltage
2.shows that the input voltage
3.alternate display input and output voltage
Tested by ICStation's Outstanding Partner LearningZone:
Learn More Details in the Video:
(The language in the video is English)
