Introduction:
This is arrow through two hearts shaped LED DIY Kit. It need to be soldered by yourself.
Parameter:
| NO. | Parameter | Value |
| 1 | Power Supply | 5V-60mA |
| 2 | Power Supply Interface | USB or 2P Male Pin |
| 3 | Led Color | RGB |
| 4 | Control mode | Button |
| 5 | PCB Size | 100*70mm |
| 6 | PCB Material | FR4 |
Function:
1>. 85pcs LED display
2>. Music ON/OFF control by button
3>. Switch the display at any time
Feature:
1>. With music + high quality buzzer.
2>. New animation mode, flashing according to the heart.
3>. With new high quality STC12C5A60S2 chip.
4>. The electrical parameters have been strictly calculated, and the circuit board has been optimized for electrical performance.
5>. Beautiful appearance: red PCB + arrow through two hearts style + button+ exquisite butterfly pattern.
6>. With 15 animation +11 music
7>. The high quality acrylic crystal shell with high precision laser cutting and new structural design is reliable and beautiful.
Component Listing:
| NO. | Component Name | Parameter | QTY |
| 1 | Buzzer | 5V 12mm | 1 |
| 2 | Electrolytic Capacitor | 16V 220uF | 1 |
| 3 | MINI USB | 5P | 1 |
| 4 | Button | 2 | |
| 5 | Power Switch | 1 | |
| 6 | USB Cable | 1 | |
| 7 | STC12C5A60S2 | DIP-40 | 1 |
| 8 | IC Socket | DIP-40 | 1 |
| 9 | RGB LED | 3mm | 1 |
| 10 | Copper Pillar | M3*12mm | 4 |
| 11 | Screw | M3*5mm | 4 |
| 12 | PCB | 100*70 | 1 |
Please Download the Installation Manual Here
Basic Instruction:
1>. Power Input: 2kinds input type USB or Male Pin;
2>. Power Switch: Control power;
3>. Buzzer:Play voice;
4>. Next:Display next animation and music;
5>. Music ON/OFF: ON or OFF voice playback.Animation is not affected, continue to show.

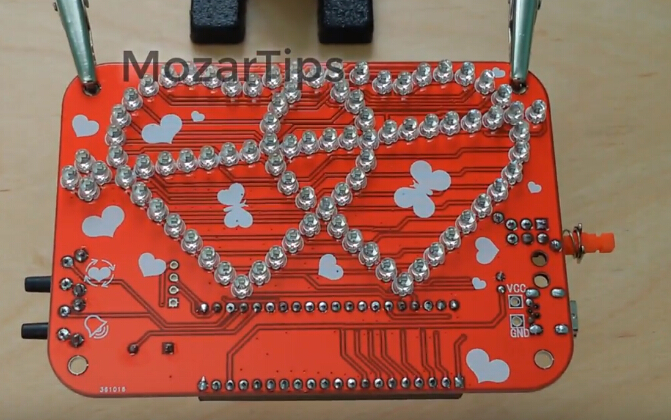

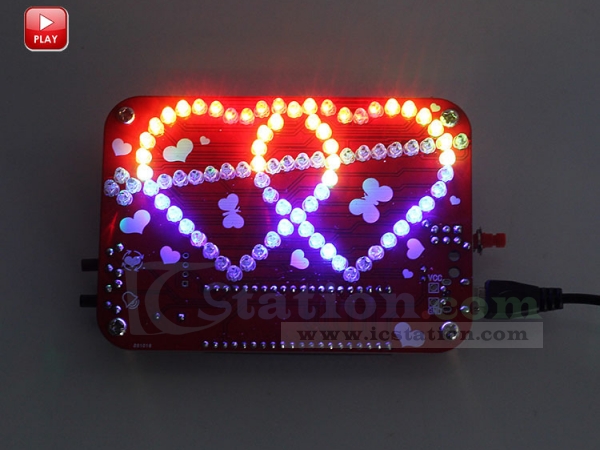

Finished Product Picture:
1. Tested by ICStation:
2. Tested by ICStation's Outstanding Partner MozarTips:
Learn More Details in the Video:
(The notes in the video is English)
3. Tested by ICStation's Outstanding Partner todderbert:
(The language in the video is English)
| Quantity | 10+ | 30+ | 50+ |
| Price | $8.80 | $8.70 | $8.50 |
