DIY Kit Flame Fire Monitoring And Detection Module Automatic Alarm Household Fire Protection System DIY Electronic Kit

GY21020-1
5 9
$3.99 $2.79
Quantity5+10+
Price$2.70$2.59
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
1.Description:

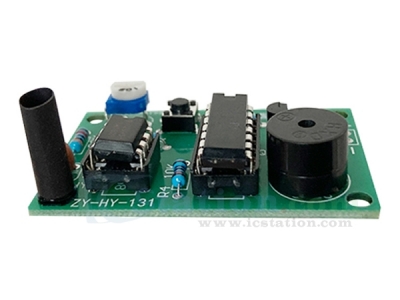

   The circuit uses an infrared receiving diode as the sensor for flame detection. It is powered by a 5V DC voltage and can be tested by simulating a warehouse fire with a lighter at a distance of 30cm above the flame sensor. When the lighter flame is close to the sensor, the buzzer will quickly sound an alarm to signal a fire. The alarm will only stop when the alarm cancellation button (a momentary switch) is pressed.

2.Feature:
  1>.This device detects flames or specific wavelengths of light.
  2>.It can detect flames from up to 80 centimeters away and detects larger flames from farther away.
  3>.It has a sensitivity of 60 degrees and is highly sensitive to flame characteristics.
  4>.The device has a comparator output with a strong, clean signal and good waveform.
  5>.It has an adjustable sensitivity and precision potentiometer.

3.Parameter:
  1>.Work Voltage: 5V
  2>.Work Temperature:-25℃~85℃
  3>.Work Humidity:5%~95%RH
  4>.Size: 51*32mm

Quantity5+10+
Price$2.70$2.59
