DIY Kits CD4060 SMD Music Fancy Lantern Colorful LED Lamp Suite Electronic Training

5 1
$3.58 $2.51 (only 0 pcs )
Contact us for wholesale price
Time Remaining:

Sold out


CD4060 SMD Music Fancy Lantern Colorful LED Lamp Suite is specially designed for electronic assembly and debugging skills check.
The circuit designs with CD4060 chip oscillator which is quite popular in the digital circuits, and counting to control the flashing LED.
The DIY kit is worthy of being learned and analyzed of its circuit.

Circuit Picture:

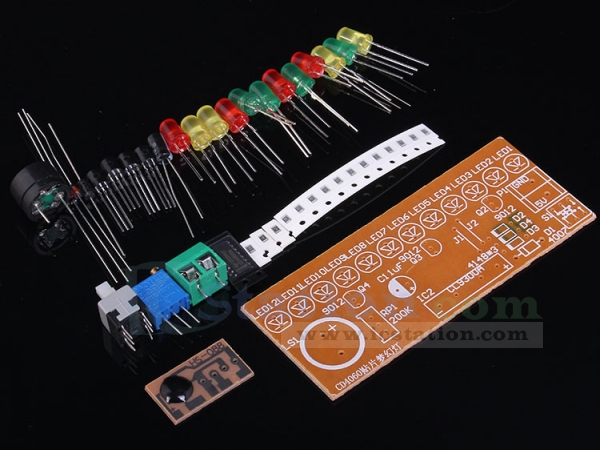

Packing List:

No. Components Specification QTY
1 SMD 0805 Resistor 200ohm 12
2 SMD 0805 Resistor 10K 1
3 SMD 0805 Resistor 220K 1
4 SMD 0805 Resistor 1.5M 1
5 CD4060 SOP-16 1
6 LED 5mm 4
7 LED 5mm 4
8 LED 5mm 4
9 S9012 TO-92 3
10 S8050 TO-92 1
11 IN4148   3
12 IN4007   1
13 Electrolytic Capacitor 50V 1uF 1
14 Potentiometer 200K 204 1
15 Self-lock Switch 8*8 1
16 Buzzer   1
17 Voice Chip   1
18 Connection Terminal 2P 1
19 PCB   1

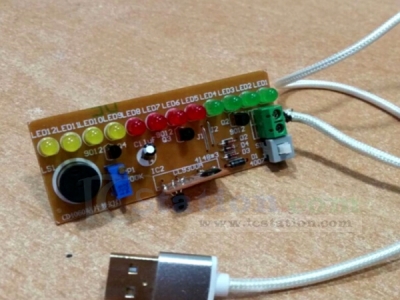

Finished Product Picture:
