DIY Kits Hourglass Shaped LED Flashing Light

Description:

▲This kit adopts 1.6mm double layer PCB, and the circuit consists of 57 pieces LED.
▲Under the control of MCU program, it displays analog hourglass image.
▲The micro switch can adjust the speed of hourglass, and the bright LED can be used as decoration of small night light. 0.5W power consumption.
▲Widely used in schools to help students learn basic electronic circuit knowledge and soldering. Wholesale price can be applied for bulk orders.





Parameter:
1.Board Size: 84*40mm
2.Power Supply Voltage: 5V

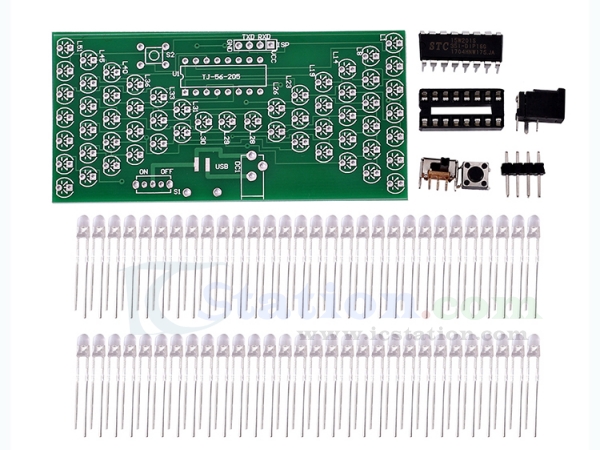

Component List:

NO. Component Name PCB Marker Parameter Quantity Remarks
1 White LED L1-L57 3mm 57
2 Toggle Switches S1 3Pin 1
3 Button S2 6*6*2mm 1
4 IC Socket U1 DIP-16 1
5 STC15W201S U1 DIP-16 1 Install on IC socket
6 Power Socket DC1   1
7 Male Pin ISP 4P 1
8 PCB     1

NOTE: You can complete the installation by PCB silk screen and component listing.

Installation Manual (PDF):

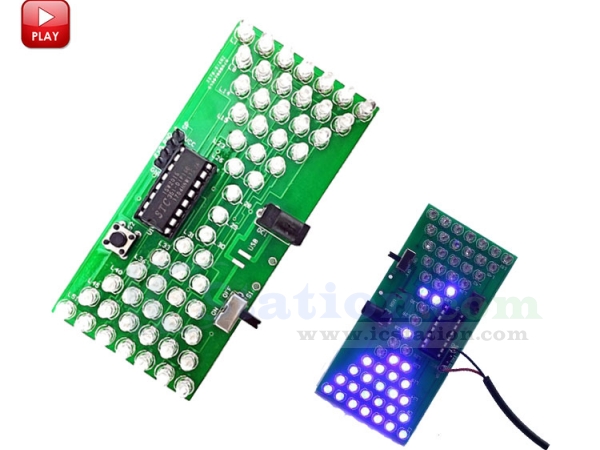

Finished Product Picture:

1. Tested by ICStation:




2. Tested by ICStation Outstanding Partner E-Station:

Learn More Details From the Video.

(The language in the video is Russia)

Quantity10+30+50+100+
Price$3.30$3.10$2.95$2.65
