DC 5V Audio Module Bluetooth-compatible Receiver Universal Audio Module

12506
5 9
$4.59 $3.21
Quantity10+30+50+
Price$3.10$2.95$2.70
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
This module has a slight change since Aug 6th., 2019. The functions are still the same.
We have updated the products picture. Those already appeared in the below videos can not be changed.
Thank you for your attention!

Description:

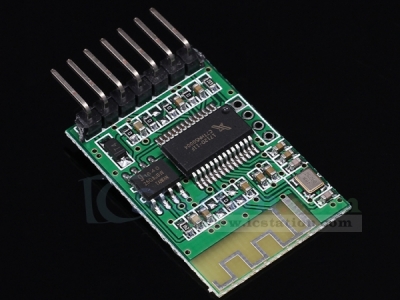

The module can choose mono and stereo output, and the Bluetooth antenna is built.
The power supply voltage is 5V.
It can be used as common power amplifier and active speaker to increase Bluetooth connection function.
7PIN output interface for spacing 2.54 through hole.
7PIN output interface for: + power, ground, left, right, mute, LED status indication, reserved port.
Among them, the LED status port is connected with a 100 ohm resistor in series.
The LED indicates that the Bluetooth is not connected and the flash is fast.
After Bluetooth connection is successful, it is slow flashing. The volume is: 30x20x3mm.

Operating Voltage Range:
4.1V~5V
(not more than 5.1V, when using charger power supply, car charging power supply or DC-DC power supply, pay attention to the power supply voltage and ripple voltage, can string a diode)


Pin Definition:


Connection:



I. Tested by ICStation's Outstanding Partner zxDTSxz:

Learn More Details in the Video:
(The language in the video is Russian)







II. Tested by ICStation's Outstanding Partner Bassblaster Audio Tech:

Learn More Details in the Video:
(The language in the video is English)



III. Tested by ICStation's Outstanding Partner sjm4306:

Learn More Details in the Video:
(The language in the video is English)

Tested by ICStation's Outstanding Partner Helectronics:
(The language in the video is English)
