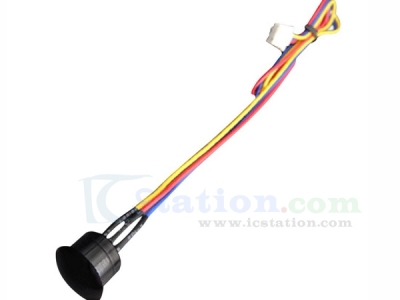

5V Infrared Ranging Sensor Human Body Distance Sensor Module Sensing Distance 0-10cm for Automatic Sensor Faucet

GY19396
5 9
$8.99 $6.29
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

1.Description:
 It is a infrared ranging sensor .It replaces traditional mechanical switches and is suitable for short-distance detection in various occasions, and can be used for material detection,sweeping detection, and object parts detection.

2.Feature:
 1).It uses high-quality PC optical materials,waterproof and fireproof.
 2).Its sensing distance is 0~10cm.
 3).It has strong anti-interference ability and stable use.
 4).It is compact and easy to install.
 5).It is sensitive,and objects can be sensed within the sensing range.

3.Parameter:
 1).Product Name:Infrared Ranging Sensor
 2).Working Voltage:DC 5V
 3).Working Current:7A(Object enters the sensing area),4A(Object leaves the sensing area)
 4).Power Consumption:35W(Object enters the sensing area),20W(Object leaves the sensing area)
 5).Sensing Distance:0-10cm
 6).Output Voltage:0V(Object enters the sensing area),3.3V(Object leaves the sensing area)
 7).Output Source Current:1mA
 8).Output Sink Current:50mA
 9).Response Time:0.5s
 10).Work Temperature:-25℃~75℃
 11).Storage Temperature:-40℃~85℃
 12).Work Humidity:5%~95%RH
 13).Size:15.5*15.5*10.2mm

4.Instructions:
 1).Fix the sensor probe on the mounting plate with a straight hole 13mm+/-0.5mm.
 2).Connect the sensor to the power supply and the control board.
 3).The default sensing distance of the sensor is 10cm.When the measured object is slowly approaching in front of the sensor to reach a distance of 10cm,the indicator light of the sensor probe is on,and the yellow signal output line outputs a 0V low-level signal;the measured object moves back 13cm from the sensor When left and right,the indicator light of the sensor probe is off,and the yellow signal output line outputs a 3.3V high-level signal.
 4).The sensing direction of the sensor should not be installed in the direction of sunlight,otherwise the sensing distance may change.
 5).The surface of the sensor probe should be kept clean to avoid dust,oil stains,water drops or other dirt covering the surface of the probe.

5.Package:
1pcs Infrared Ranging Sensor
