1.Description:

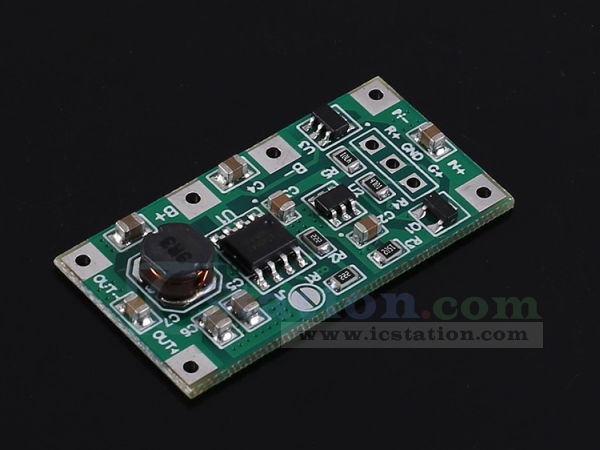

It is a UPS uninterruptible power supply control board.
2.Features:
1>.Support charging and discharging at the same time
2>.Large current
3>.Small size
4>.High efficiency
5>.Support short circuit protection
3.Parameters:
1>.Product Name:UPS Voltage Converter Module
2>.Working Voltage:DC 5V 1A
3>.Output Voltage:DC 5V 1A
4>.Output Power:5W
5>.Support Battery(No include!):3.7V Lithium or polymer battery 10Ah(Max)
6>.Input reverse connection protection:Yes
7>.Input overvoltage protection:Yes
8>.Output reverse connection protection:Yes
9>.Output short circuit protection:Yes
10>.Working Temperature range:-40℃~85℃
11>.Working Humidity range:0%-95%RH
12>.Size:33*17*4mm
4.Using Steps:
1>.Connect right input voltage at input terminal.
2>.Check output voltage by voltmeter and ammeter.
3>.Connect battery at B+ and B-.
5.Note:
1>.Its max output current is 1A and can not keep output 1A.
2>.The positive and negative poles of the battery cannot be reversed. Otherwise the module will be damaged.
3>.Users can install a common anode Red-Green LED by yourself as charging indicators. Red light indicates whether there is a load at output. Green flashing display capacity. Green OFF if without load or battery.
4>.Due to the large current, it is recommended to use a thicker wire. Wire cross-section greater than 1.5 square millimeters.
5>.Please read use manual and description before use.
6.Application:
1>.Ordinary power supply;
2>.Battery charger;
3>.Mobile power;
4>.Power conversion;
5>.Infrared alarm;
6>.Network equipment such as switches;
7>.Router;
8>.Battery car modification
7.Package:
1pcs UPS Voltage Converter Module
