2X3W MP3 USB Audio Receiver Amplifier Board Module 90dB Support U Disk TF Card MP3 WAV Lossless Decoder IR Remote Control

11639
5 9
$5.29 $3.70 (only 0 pcs )
Contact us for wholesale price
Time Remaining:

Sold out


Product Introduction:
1>. Power Supply:3.7-5V
2>. SNR:90dB
3>. THD+N:-70dB
4>. Crosstalk:-86dB
5>. DNR:91dB
6>. Support Profile:A2DP/AVCTP/AVDTP/AVRCP/HFP
7>. LOS:>15m

Operation Introduction:

1>. Mode Control:when the decode board doesn't plug U-disk or TF card,power on defaults bluetooth mode;when the decode board plugs U-disk or TF card,power on defaults music mode;

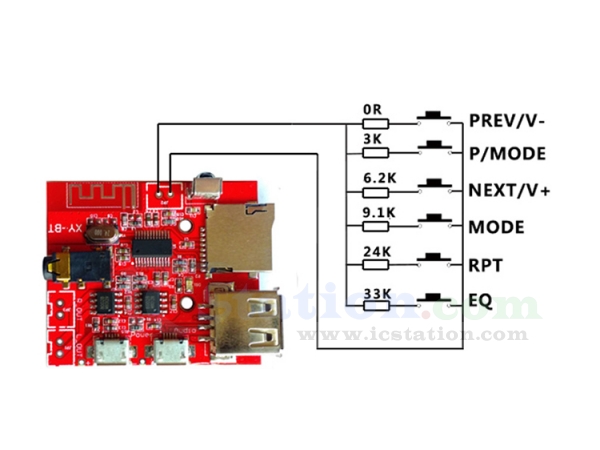

using remote control MODE key or key to switch mode

2>. Music Mode:plug U-disk or TF card can play audio file which has been saved

3>. Bluetooth Mode:when switching mode,it broadcasts "The bluetooth device is ready to pair",representing that the board has entered into bluetooth mode and waiting for matching;
cellphone bluetooth searching "XY_BT" (decode board device name),click the link,and the board prompts ".
The bluetooth device is connected successfuly",representing that the decode board has connect with cellphone successfully and then play the music

4>. USB Audio: USB Audio mode (also called sound card mode),use USB wire to connect with USB Audio interface,switch mode prompts "USB MODE" that is USB Audio mode.
Open the music player on computer to play music,use decoder board to play music;if plug into TF card then it can be read

5>. Notice: when using USB Audio mode,please don't plug into U-disk.

Notice:
1>. If U-disk is playing,please use USB 5V for power supply (no recommend 3.7V lithium battery)
2>. Please use POWER interface when using mobile power or computer for power supply;cannot use USB Audio interface
3>. U-disk or TF card only supports FAT16/FAT32 file system,doesn't support NTFS system

Tested by ICStation's Outstanding Partner 12voltvids:


Learn More Details in the Video:(you could also enjoy some awesome music~)
(The language in the video is English)
