DIY Kit Automatic Flashing LED Lamp Self-excited Multivibrator Circuit Electronic Soldering Kits for Beginners

GY20876-1
5 9
$3.99 $2.79
Quantity5+10+20+
Price$2.75$2.50$2.39
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
1.Introduction:
TJ-56-523 is a Self-excited Automatic Flashing LED Lamp Electronic Soldering DIY Kit. It is a typical self-excited multivibrator circuit, realizing the automatic alternating flashing of two LED.
It is a very interesting DIY electronic product which enables users to understand the circuit more clearly and learn soldering skills.

2.Feature:
1>.LED flashes automatically
2>.Simple and convenient operation

3.Parameter:
1>.Product Name: TJ-56-523 Self-excited Automatic Flashing LED Lamp DIY Kit
2>.Work Voltage:DC 3V
3>.Work Temperature:-40℃~85℃
4>.Work Humidity:5%~95%RH
5>.Size(Installed):40x39mm

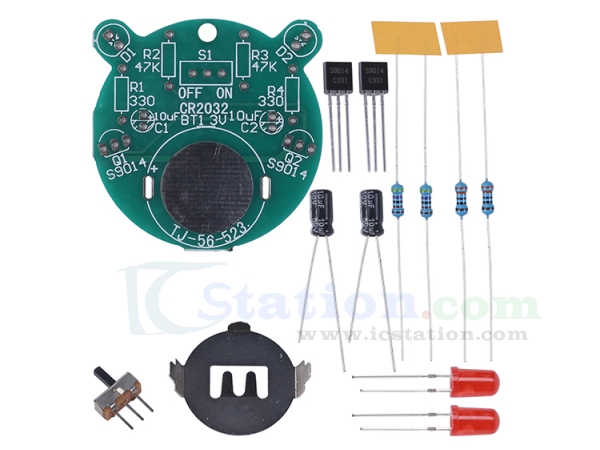

4.Component Listing:



5.Application:
1>.Training welding skills
2>.Student school
3>.DIY production
4>.Project Design
5>.Electronic competition

6.Installation Tips:
1>.User needs to prepare the welding tool at first.
1.1>.Soldering iron (<50 Watt)
1.2>.Rosin core ("radio") solder
1.3>.Wire cutters
1.4>.Wire strippers
1.5>.Philips screwdriver

2>.Please be patient until the installation is complete.
3>.The package is DIY kit.It need finish install by user.
4>.The soldering iron can't touch the components for a long time(1.0 second), otherwise it will damage the components.
5>.Pay attention to the positive and negative of the components.
6>.Strictly prohibit short circuit.
7>.User must install the LED according to the specified rules.Otherwise some LED will not light.
8>.Install complex components preferentially.
9>.Make sure all components are in right direction and right place.
10>.It is strongly recommended to read the installation manual before starting installation!!!
11>.Please wear anti-static gloves or anti-static wristbands when installing electronic components.
