XH-M544 TPA3116D2 150W Mono Subwoofer Amp Board Digital Amplifier Module Single Channel Audio Amplifying Board Module DC 12-26V

13142
5 9
$13.99 $9.79 (only 0 pcs )
Contact us for wholesale price
Time Remaining:

Sold out


Description:
This product is a built-in TPA3116D2 chip with the power channel digital power amplifier board.

Parameters:

No. Parameter Value
1 Chip TPA3116D2
2 Supply voltage DC 12-26V
3 Output power Less than 150W
4 Output load 4-8 Ohm
5 Frequency Response 14-100KHz
6 Signal to noise ratio 100DB
7 Vocal tract  Single channel
8 Net weight 67g
9 Appearance size 77*73*16mm

Features:
1>. Complete capacitance design
2>. Pre stage amplifier system
3>. MB series
4>. Military grade PCB
5>. SMT patch technology

Module Details:

Application:
1>. Connected mobile phone computer
2>. Home Theater
3>. DIY audio

Using Attention:
Please do not connect the power and the speaker freely. Please refer to the data provided by the product description for reasonable collocation. Otherwise, the function board will be damaged.

Warm tips:
Power amplifiers can be noisy in some cases. Here are some common reasons

1>. Hardware problem:
The power supply is unstable, or the power supply module generates interference.
The influence of switching power supply as power supply.
Using transformer power supply, do not do shielding isolation.
There are electromagnetic interference in the use of the environment.
The audio input device itself has problems.

HOW TO SOLVE:
  Power and power amplifier should maintain a certain distance. To avoid electromagnetic interference, it is best to use high quality power supply, power supply will be stable.
If you use transformers and other power supplies, it is best to use iron cover to prevent electromagnetic interference.

2>. Software problem:
Interference of Audio driver settings
Interference of Player effects

HOW TO SOLVE:
  When the power amplifier is connected to the computer or mobile phone, the relevant special effects software or sound card driver special effects can be set off.
Using special effects to ensure that the output of the power amplifier is not affected.

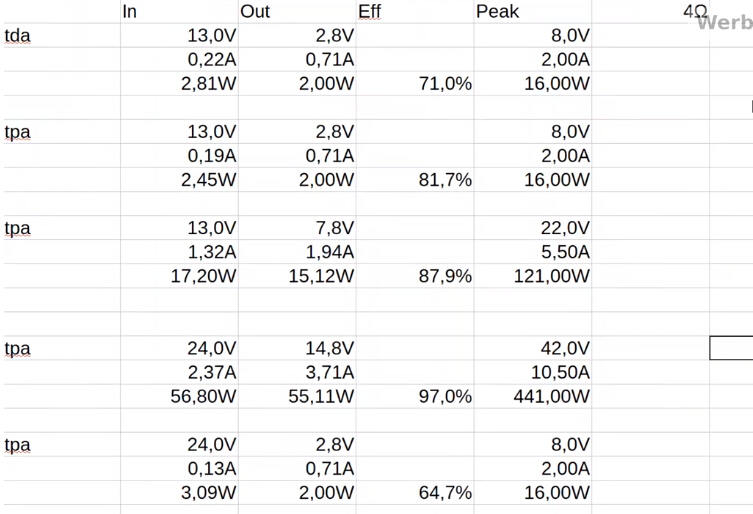

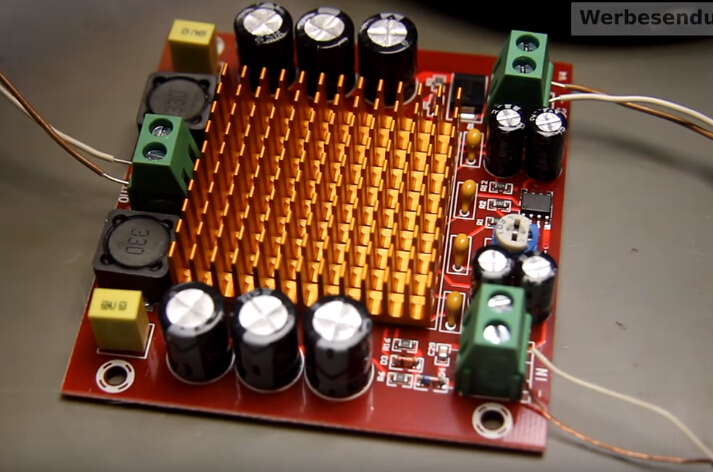

I. Tested by ICStation's Outstanding Partner BitBastelei:

Learn More Details in the Video:
(The language in the video is German)



II. Tested by ICStation's Outstanding Partner sjm4306:

Learn More Details in the Video:
(The language in the video is English)




III. Tested by ICStation's Outstanding Partner 12voltvids:

Learn More Details in the Video:
(The language in the video is English)
