XY-P40W Dual Channel Stereo Bluetooth-compatible Power Amplifier Board 5V 12V 24V 20W 30W 40W Infrared Remote Control Receiver Module Audio module with Case

13862
5 9
$9.99 $7.49
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

Cheaper Buy Together

$20.24-5%Bundled Price:$19.22
1.Description:

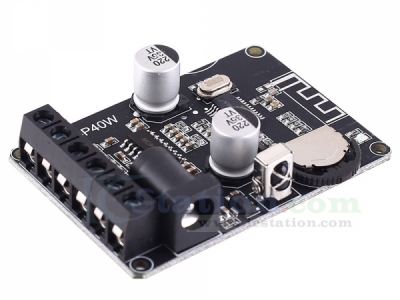

    XY-P40W is a high-power stereo Bluetooth audio module.Dual channels audio signal output.Built-in amplifier module therefore it can connect to loudspeaker directly.It is ideal for DIY wireless Bluetooth speakers and transponders.

2.Features:
    1>.Width work voltage range
    2>.Applicable multiple type speakers
    3>.Knob adjustment
    4>.Support reverse connection protection
    5>.Support short circuit protection
    6>.Self-recovery overheat protection
    7>.Support remote control

3.Parameters:
    1>.Product name:XY-P40W Stereo Bluetooth Power Amplifier Module
    2>.Model:XY-P40W
    3>.Work Voltage:DC 5V-24V
    4>.Communication distance:15meter(Max)
    5>.Channel:Dual channel
    6>.Output Power(at 1KHz):
        6.1>.Output power 20W*2 at 12V 4ohm
        6.2>.Output power 30W*2 at 16V 4ohm
        6.3>.Output power 30W*2 at 21V 8ohm
        6.4>.Output power 40W*2 at 24V 8ohm
    7>.Match speaker(40W~200W):
        7.1>.4ohm at 5V~16V
        7.2>.8ohm at 5V~24V
    8>.Work Temperature:-40℃~85℃
    9>.Work Humidity:0%~95%RH
    10>.Module Size:55*38*14mm
    11>.Remote controller:86*40*7mm

4.Use steps:
    1>.Choose the right speaker and connect as shown in wiring diagram.
    2>.Connect to right power supply from input terminal.LED indicator will flashing and it means that module enters pairing mode.And then speak prompt voice and it means that module is waiting for pairing.
    3>.Turn ON Bluetooth in phone.
    4>.Select Bluetooth device ‘XY-P40W’ in your Bluetooth device listing.
    5>.LED indicator will keep ON and it means that module is successfully connected and is waiting for playing.
    6>.Module will playing music after select music in phone.LED indicator will keep slowly blinking.
    7>.Increase volume by turn right potentiometer.
    8>.Decrease volume by turn left potentiometer.
    9>.Press potentiometer to play or pause music.
    10>.Press remote control also can control module.
    11>.Module will speak prompt voice if disconnected.

5.Application:
    1>.Modified speaker
    2>.Amplifier equipment
    3>.Car Bluetooth device

6.Note:
    1>.The power amplifier board should be as far away as possible from the WIFI signal (router) avoid signal interference.
    2>.Recommended power supply voltage DC 5~24V.Module will be damaged if input voltage is more than 26V.
    3>.Input voltage can not more than 16V if connect 4ohm speaker.
    4>.Input voltage can not more than 24V if connect 8ohm speaker.
    5>.It is recommended to use a power supply of 2A or higher.
    6>.Please don’t use too long wires to avoid signal interference.
    7>.It is recommended to use a speaker above 40W to avoid speaker damage.
    8>.Please read use manual and description before use.

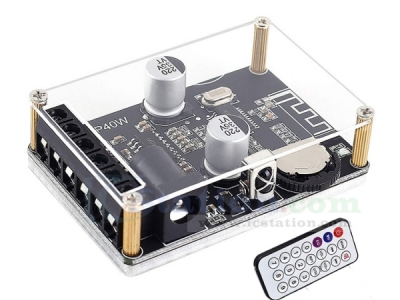

7.Package:
    1>.1pcs XY-P40W Stereo Bluetooth Power Amplifier Module
    2>.1pcs Remote control
    3>.2pcs Acrylic shell
    4>.4pcs Copper column
    5>.8pcs screw
