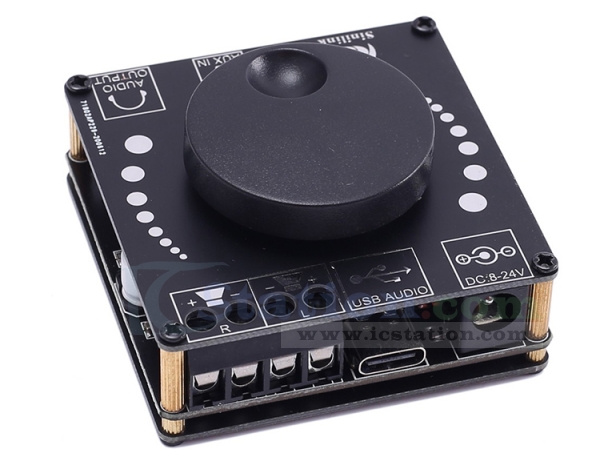

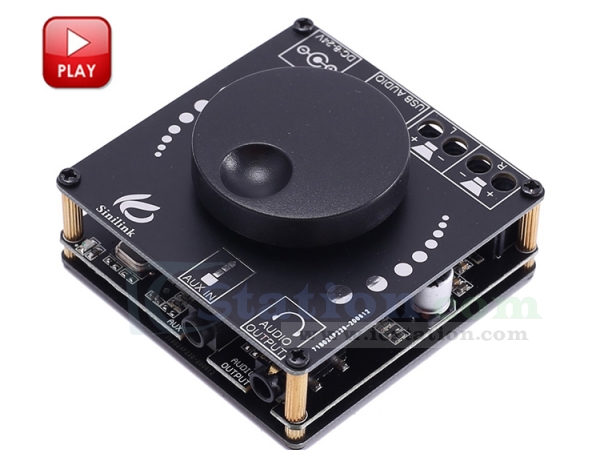

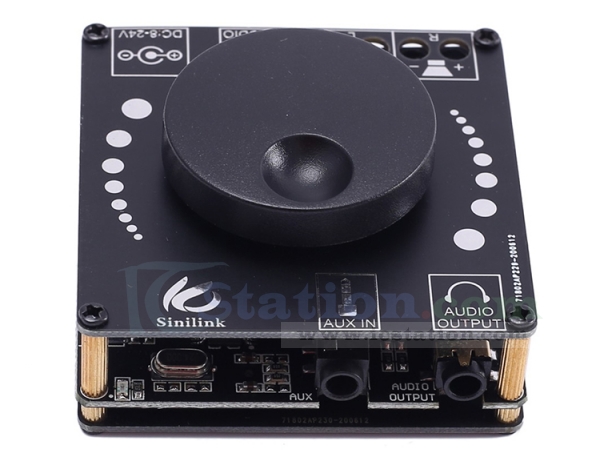

Wireless Bluetooth-compatible Audio Stereo Module APP Controller BLE5.0 20W+20W USB/AUX Digital Amplifier Module

GY18664
5 9
$13.99 $9.79
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
1.Description:

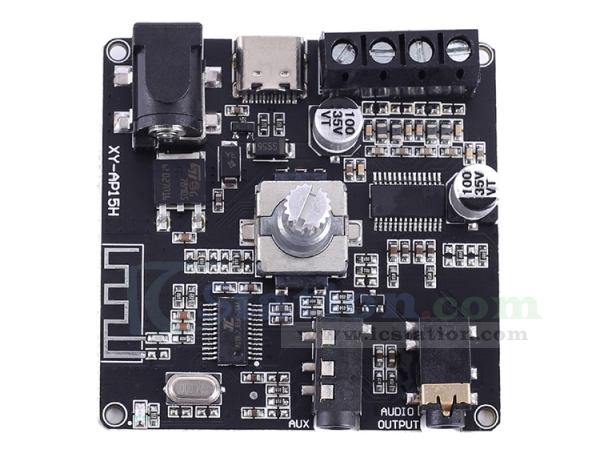

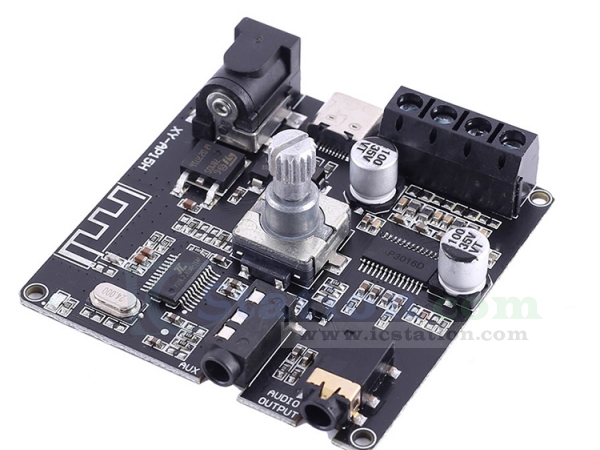

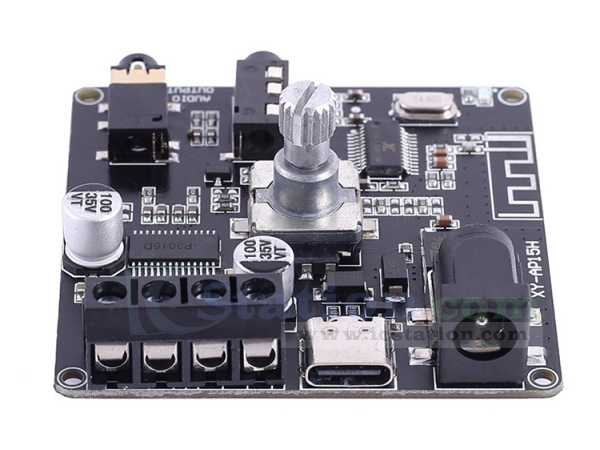

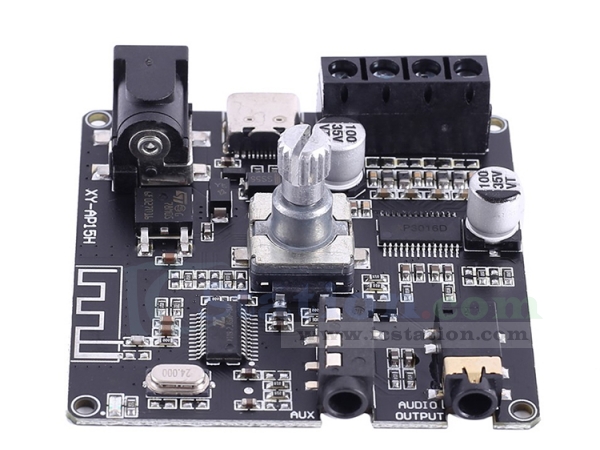

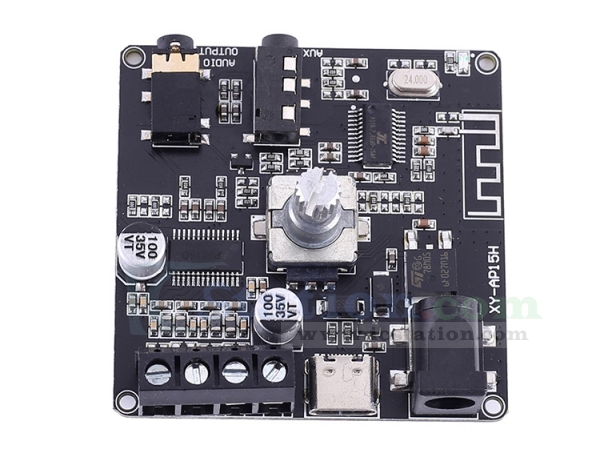

    XY-AP15H is a high-power Stereo Bluetooth Audio module.
    Dual channels audio signal output.
    Built-in amplifier module therefore it can connect to loudspeaker directly.
    It is ideal for DIY wireless Bluetooth speakers and transponders.
    It can work with APP Sinilink which can display can monitor the current voice source and switch Equalizer.

2.Features:

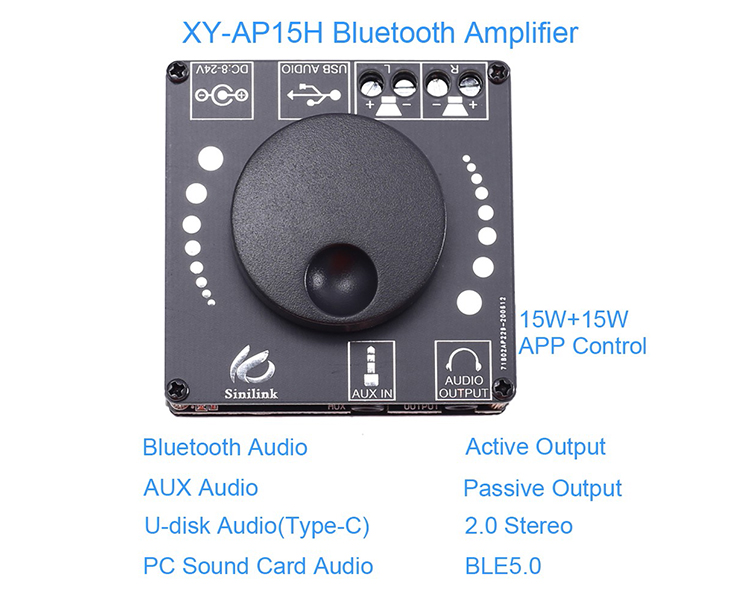

    1>.4 audio input modes
    2>.3 working protection modes
    3>.Dual channel stereo output
    4>.APP Bluetooth control
    5>.15W high power
    6>.Bluetooth automatic re-connection
    7>.Active/Passive audio output

3.Parameters:
    1>.Product Name:XY-AP15H 15W*2 Bluetooth Amplifier Module
    2>.Product Number:XY-AP15H
    3>.Working Voltage:DC 8.0V~24V
    4>.Control Type:Bluetooth/APP Sinilink Control
    5>.Audio input type:Bluetooth/AUX/U-disk/PC USB sound card
    6>.Bluetooth version:BLE 5.0
    7>.Communication distance:15meter(Max)
    8>.Channel:Dual channel stereo output
    9>.Output impedance:4ohm~16ohm
    10>.Match speaker:10W~30W
    11>.Audio output:Active/Passive audio output
    12>.Output Power:
        12.1>.Output power 10W+10W at 12V 8ohm
        12.2>.Output power 16W+16W at 12V 4ohm
        12.3>.Output power 15W+15W at 16V 8ohm
        12.4>.Output power 20W+20W at 16V 4ohm
        12.5>.Output power 20W+20W at 20V 8ohm
        12.6>.Output power 20W+20W at 20V 4ohm
        12.7>.Output power 30W+30W at 24V 8ohm
        12.8>.Output power 30W+30W at 24V 4ohm
    13>.Reverse connection protection:Yes
    14>.Over temperature protection:Yes
    15>.Short circuit protection:Yes
    16>.Working Temperature range:-40℃~85℃
    17>.Working Humidity Range:5%-95%RH
    18>.Module Size:52*52*26mm

4.Use steps:
    1>.Choose the right speaker and connect as shown in wiring diagram.
    2>.Connect to right power supply from input terminal.LED indicator will flashing and it means that module enters pairing mode.And then speak prompt voice and it means that module is waiting for pairing.
    3>.Turn ON Bluetooth in phone.
    4>.Select Bluetooth device ‘XinYi’ in your Bluetooth device listing.
    5>.LED indicator will keep ON and it means that module is successfully connected and is waiting for playing.
    6>.Module will playing music after select music in phone.LED indicator will keep slowly blinking.
    7>.Increase or Decrease volume by adjust potentiometer.
    8>.Press potentiometer to play or pause music.
    9>.Open APP Sinilink and register an account if need control by APP.
    10>.Click the dot on the right.
    11>.Select ‘Con Blu Dev’ and then Search Bluetooth.
    12>.Select devices ‘Sinilink-APP’ to connect module.
    13>.User can adjust volume,select next or previous,play/pause and select EQ.
    14>.Module will speak prompt voice if disconnected.

5.Application:
    1>.Modified speaker
    2>.Amplifier equipment
    3>.Car Bluetooth device

6.Note:
    1>.The power amplifier board should be as far away as possible from the WIFI signal (router) avoid signal interference.
    2>.Recommended power supply voltage DC 8~24V.Module will be damaged if input voltage is more than 24V.
    3>.Please don’t use too long wires to avoid signal interference.
    4>.The format of U-disk must be FAT32 and the maximum memory is 32G.
    5>.It can only select one audio output mode between active output and passive audio output.
    6>.The input voltage can not more than 12V if connect 4ohm speaker.
    7>.It is recommended to use a power supply which more than 2A.
    8>.Please read use manual and description before use.

7.Frequently Asked Questions:
    1>.Q: Why is the volume working normally when volume small, and there is turbidity after increase volume?
         A: Sound distortion. Please change the adapter power supply with higher voltage level.

    2>.Q: Why is the volume working normally when volume small, and there is pause after increase volume?
         A: The input power is insufficient.Please change the adapter power supply with higher voltage level.
         Power supply itself intermittent power-off protection. Please change a match power adapter.
         The power of the power supply is too large so please reduce the power of the input power.
         The power amplifier board is seriously heated resulting in trigger overheat protection, so please increase the radiator.

8.Package:

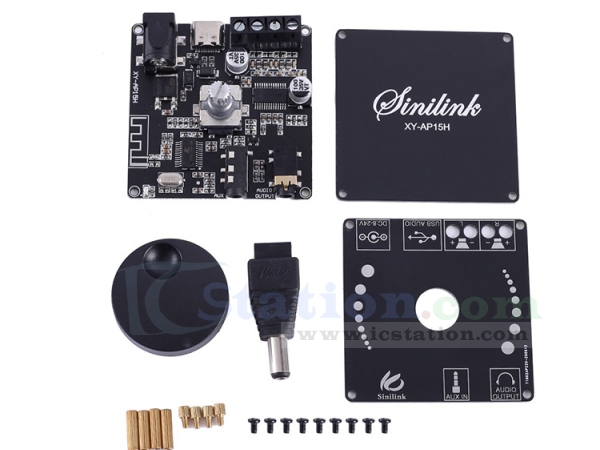

    1pcs XY-AP15H 15W*2 Bluetooth Amplifier Module
    1pcs 6mm knob cap
    1pcs DC-005 power adapter
    2pcs shell
    4pcs M2*11mm Copper column
    4pcs M2*3+5mm Copper column
    8pcs M2*5mm screw
