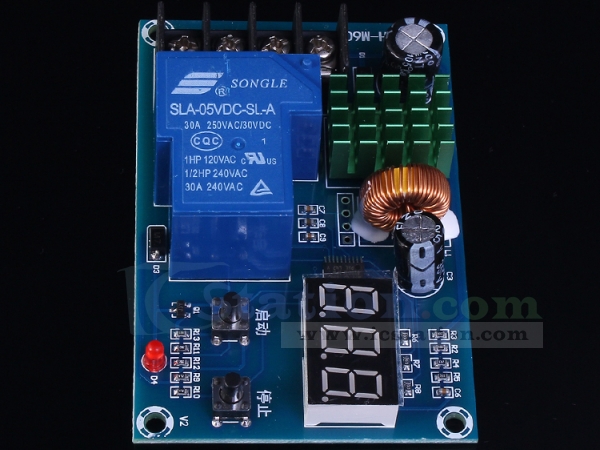

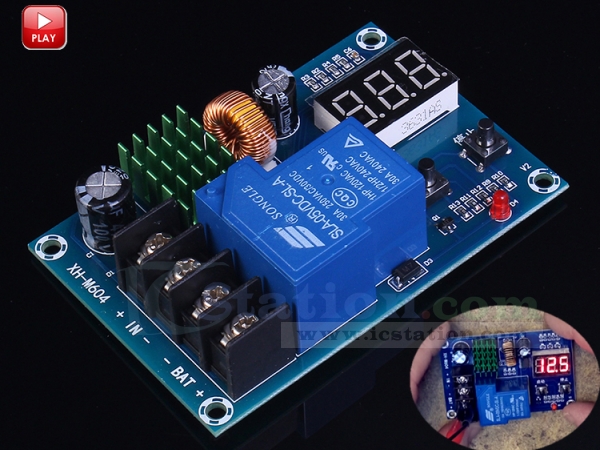

XH-M604 Charge Control Module DC 6-60V Battery Protection Board Controller for Lithium/Lead-acid Battery Solar Panel

11314
5 9
$10.99 $7.47
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

Description:
  This digital battery charging protection switch is specially designed for the DC6-60V battery. On-board momentary push button to set the charging initiation voltage and charging stop voltage, when the battery voltage reach the setting values, the module will disconnect the charging circuit automatically to aviod the battery from overching to prolong the battery lifetime.


Product Introduction:
  1.Name: numerical control battery charging control module
  2.Model: XH-M604
  3.Input Voltage:DC 6-60V (max 80V)
  4.Display Precision: 0.1V
  5.Control Precision: 0.1V
  6.Output Type:direct output
  7.Voltage Tolerance: +/-0.1V
  8.Application Fields: 6-60V storage battery
  9.Size:81*54*18mm

Using Method:
  1.Set Starting Voltage: in normal display voltage state, press the button will display start charging voltage; long press for 3s the digital tube will flash; you can start or stop button to set starting up charge voltage value.

  2.Set Stop Voltage: in normal display voltage state, press the button will display stoping charge voltage; long press the button for 3s the digital tube will flash; you can start or stop button to set stoping charge voltage value

  3.Factory Reset: in power on state press the start/stop button at the same time, digital tube will display 888; that represents factory reset settings

  4.Voltage Setting Calculation:
    Charging Initiation Voltage = Battery Rated Voltage*0.9
    Charging Stop Voltage = Battery Rated Voltage*1.2
    Charging Current = Battery Rated Current*0.1



1. Tested by ICStation's Outstanding Partner 12voltvids:

Learn More Details in the Video:
(The language in the video is English)

2. Tested by ICStation's Outstanding Partner zxDTSxz:

Learn More Details in the Video:
(The language in the video is Russian)



3. Tested by ICStation's Outstanding Partner Fran CV:

Learn More Details in the Video:
(The language in the video is Spanish)
