Temperature Module and Humidity Shiled Board Temp Sensor Module for ESP8266 ESP-01/ ESP-01S

12512
5 9
$4.99 $3.49
Quantity3+5+10+
Price$3.79$3.65$3.50
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

Description:

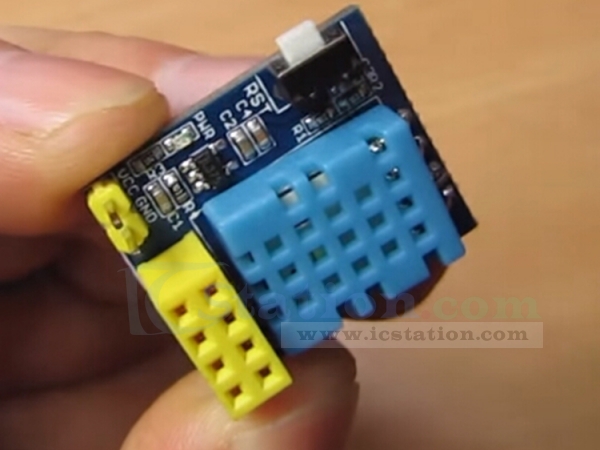

    This module uses ESP8266-01/ESP-01S (without ESP-01S or ESP-01) as the master control, and as temperature and humidity sensor.
    ESP8266 collects the temperature and humidity in the environment and uploads to the server. It supports 3.7v-12V DC power supply (3.7V lithium battery). It can be used as temperature and humidity collection node for smart home or IOT project.

Parameter:

NO. Parameter Value
1 Host ESP-01/ESP-01S (without ESP-01S or ESP-01)
2 Operating voltage DC 3.7V-12V (support 3.7V lithium battery power supply)
3 Measuring range 20-90%RH 0-50 Celsius
4 measuring accuracy Temperature: +/- 2, humidity +/- 5%RH


Application Example:
    1>. power supply: 3.7V-12V DC power VCC GND (pin 2.54mm) received.
    2>. download program to ESP-01S/ESP-01 (without ESP-01S or ESP-01).
    3>. insert ESP-01/ESP-01S (without ESP-01S or ESP-01) into the 2*4 Pin row (in the direction of the arrow).

About Connection:
    1>.TCP Server serial prints information
    2>.The sensor add sleep function
    3>. Initializers the add restart function. If the connection fails 10 times, restart the module.

Circuit Diagram:



Tested by ICStation's Outstanding Partner arduinoLab:

Learn More Details in the Video:
(The language in the video is Russian)
